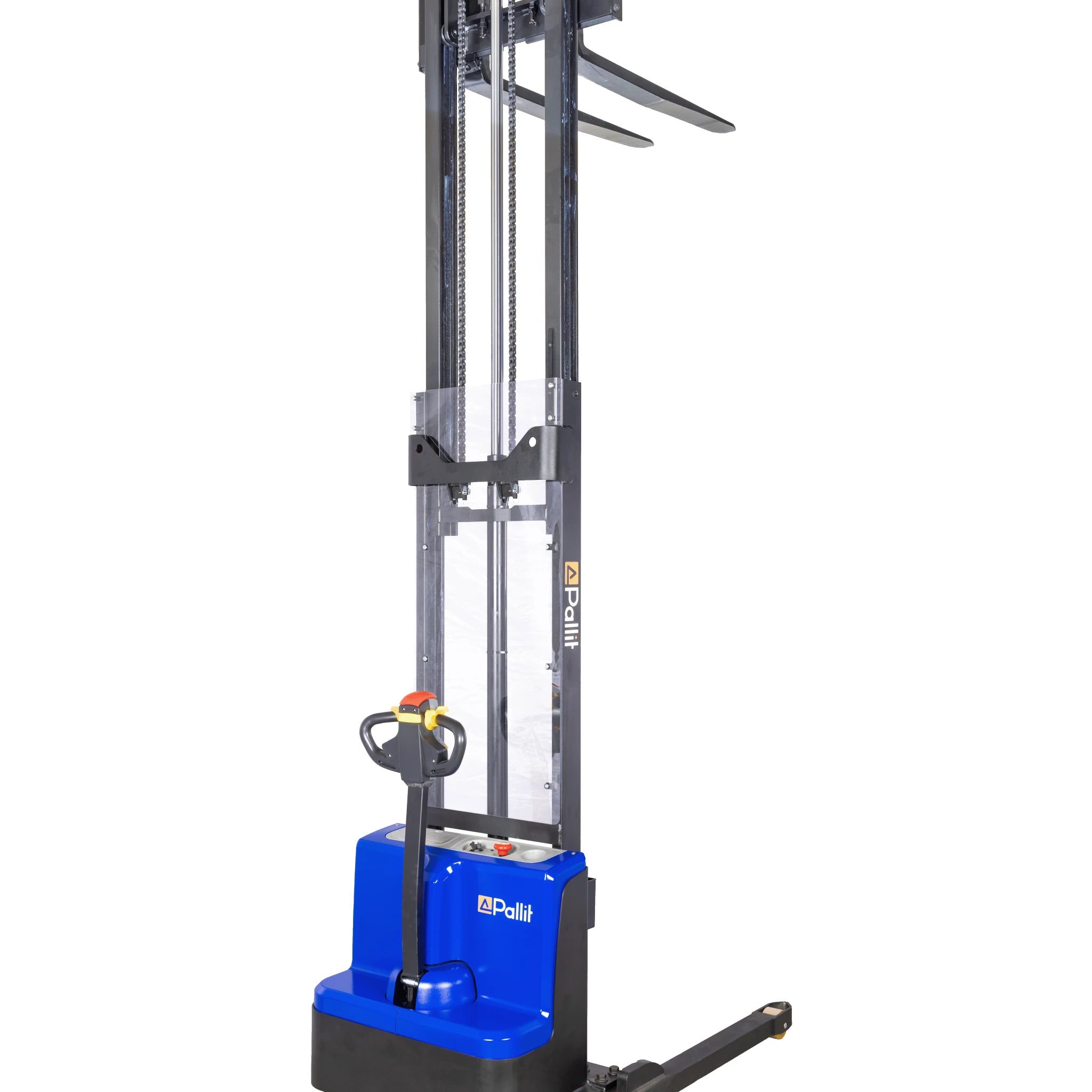

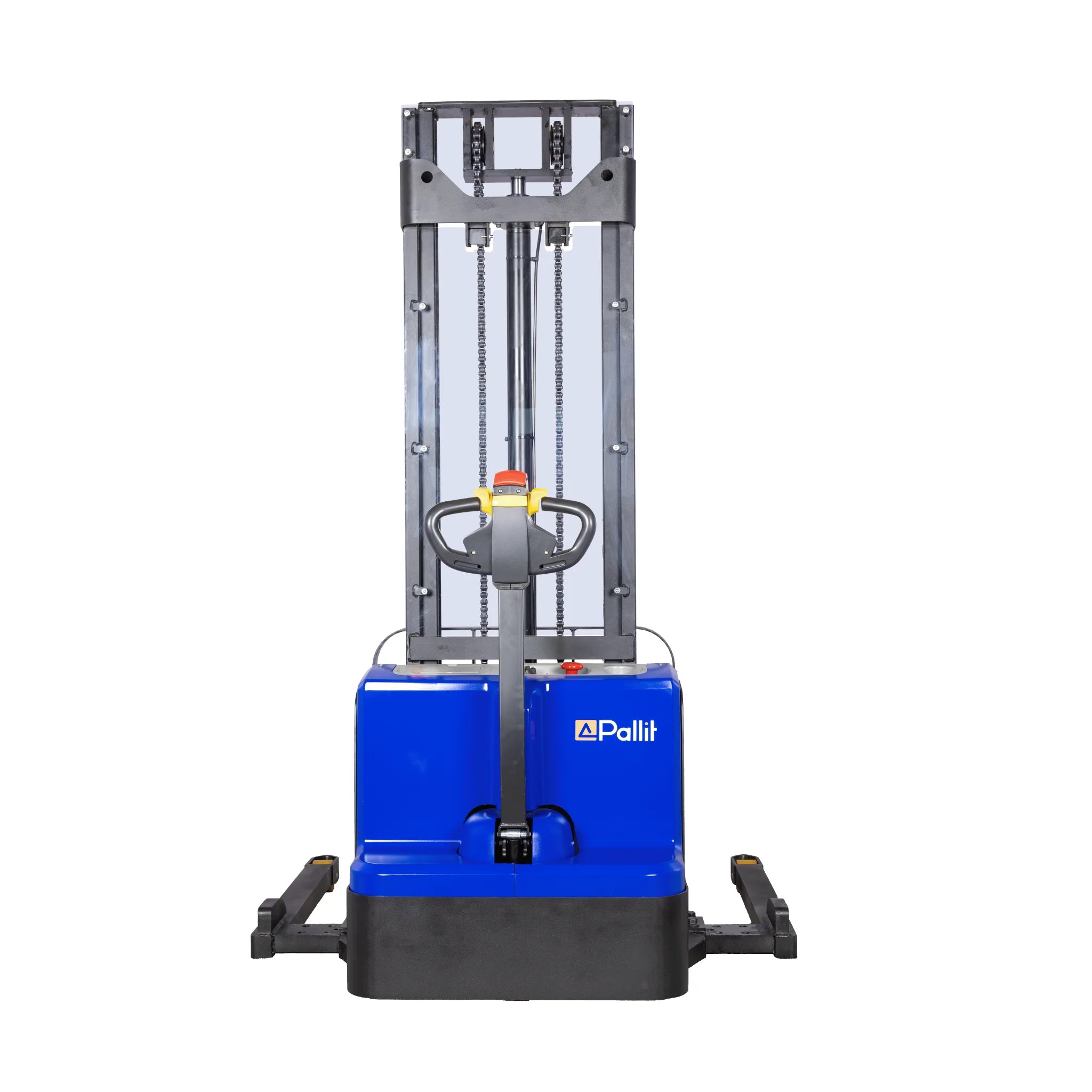

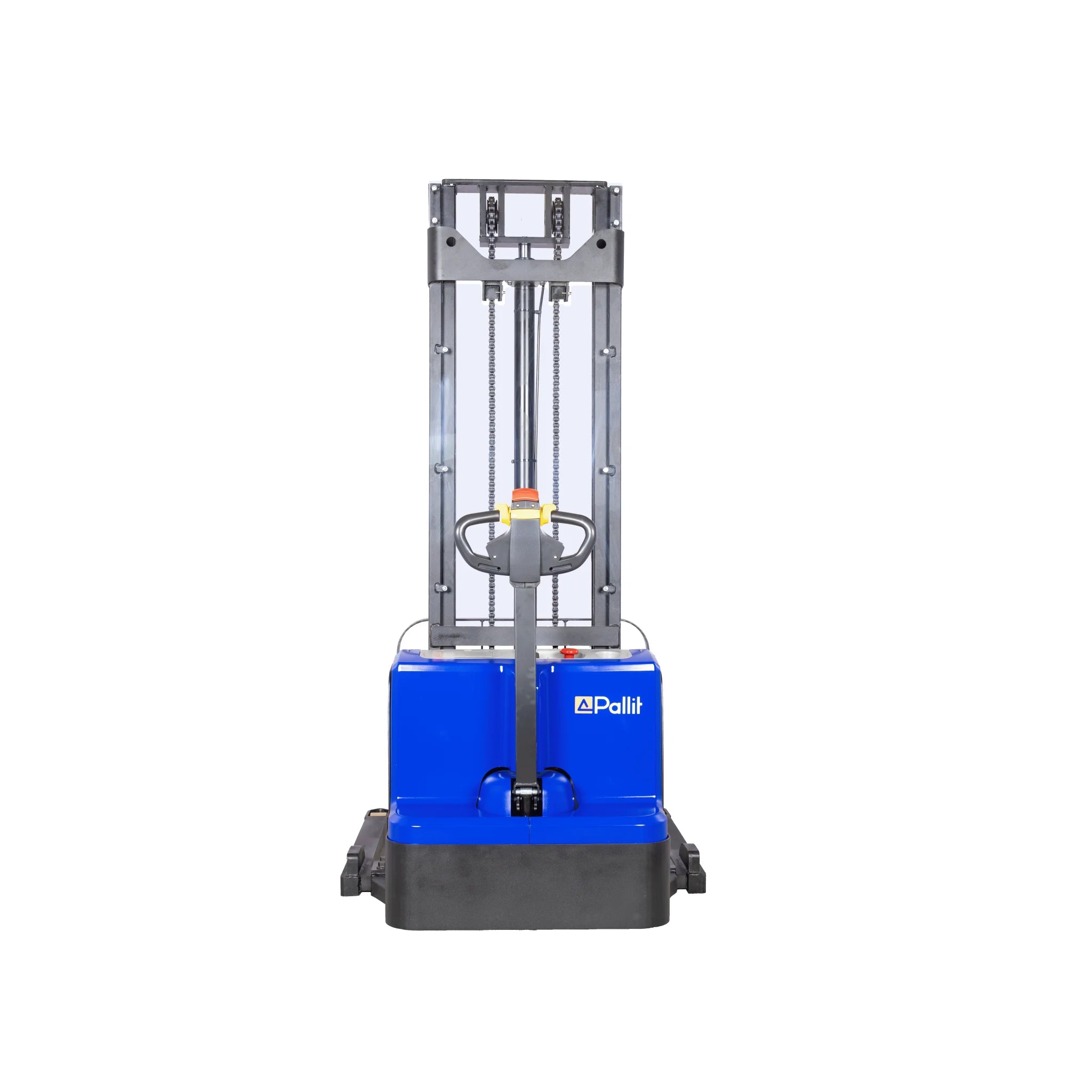

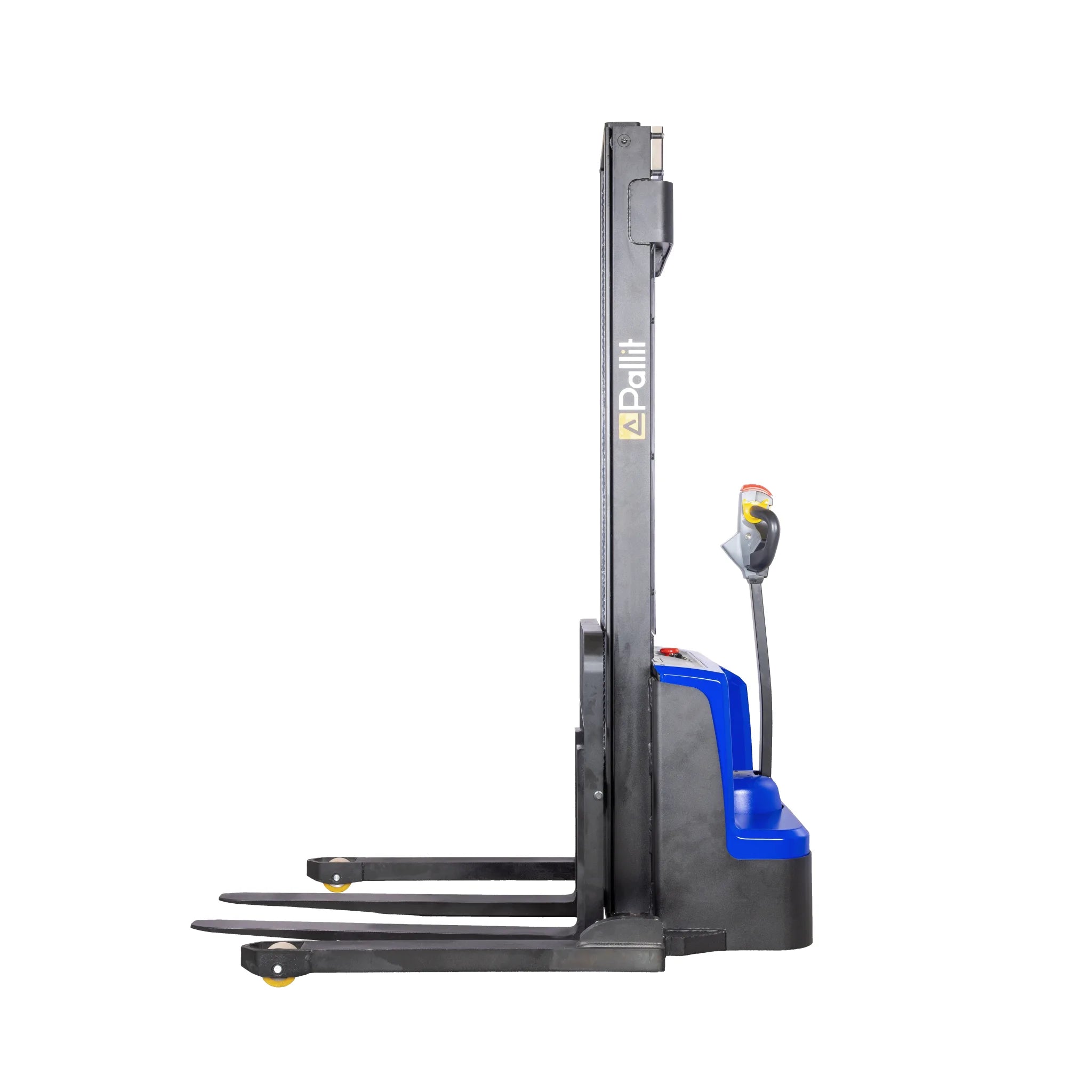

Wide-gauge electric pallet stacker BROAD

Name: Wide-gauge electric pallet stacker BROAD
Brand: Pallit
SKU: 10012304-304
Price: 23551.1 PLN
Availability: InStock

Fast pallet stacker for any pallet type up to 1500 kg.

23.551,10 zł 28.261,32 zł VAT included

lifting height

Available from: Friday, 11 September

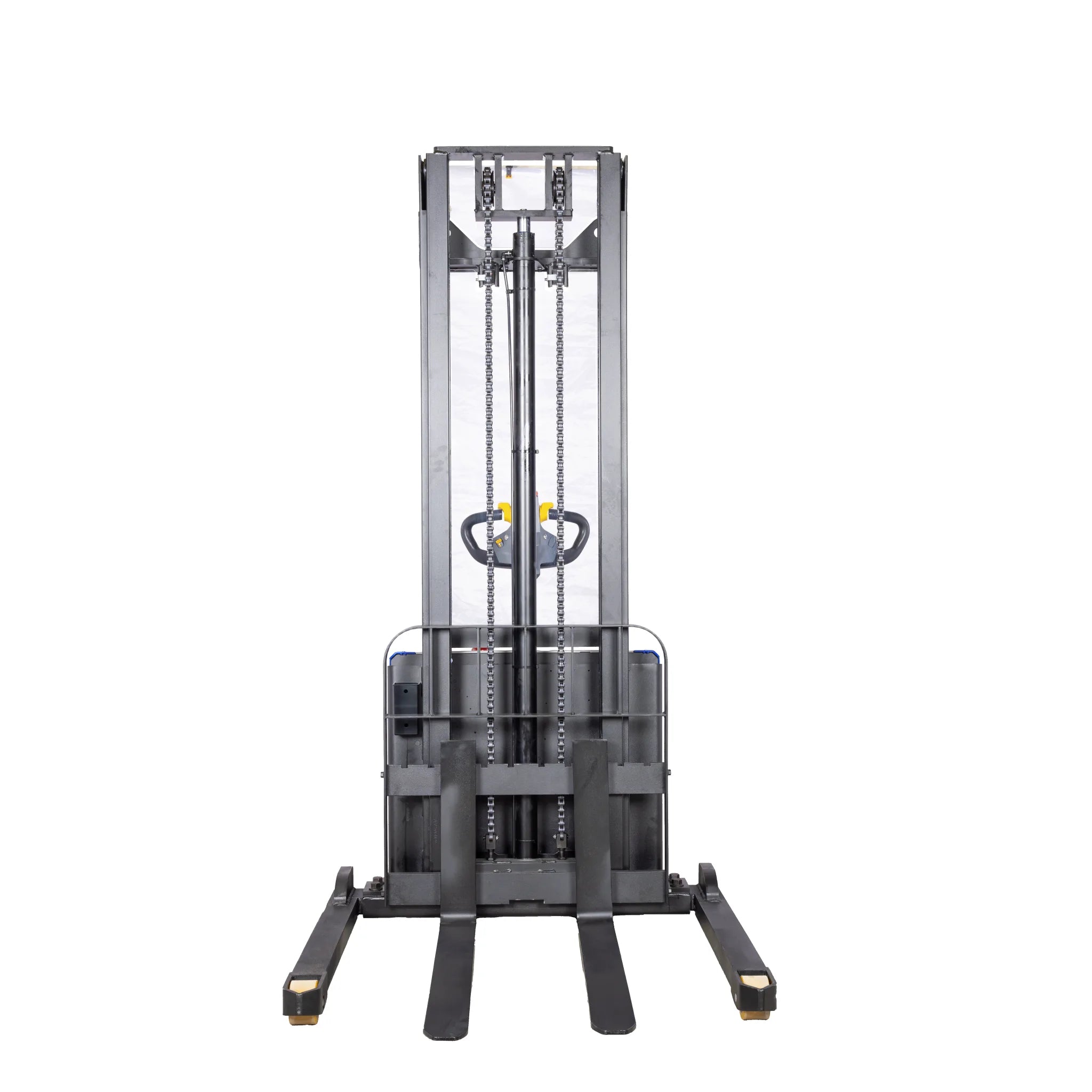

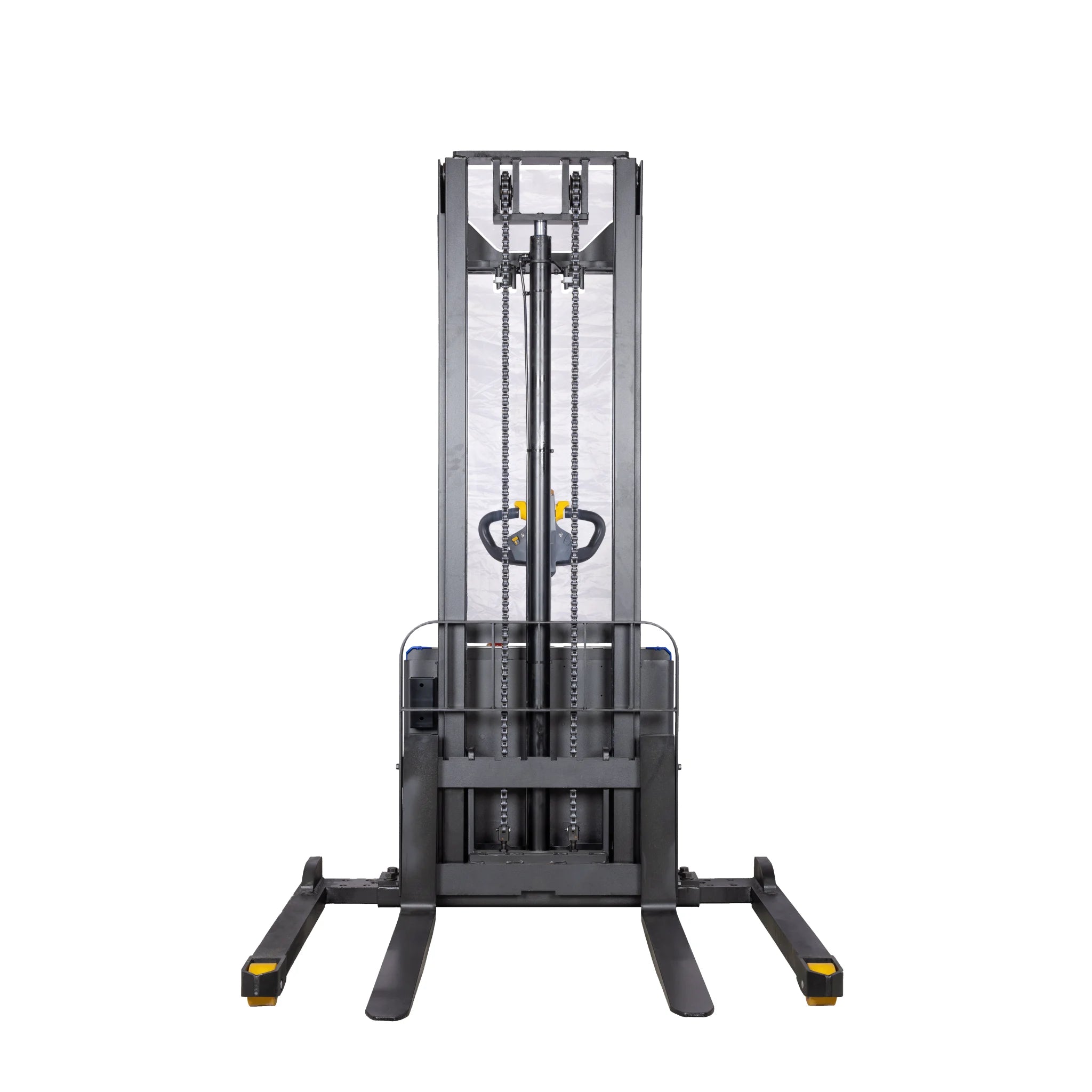

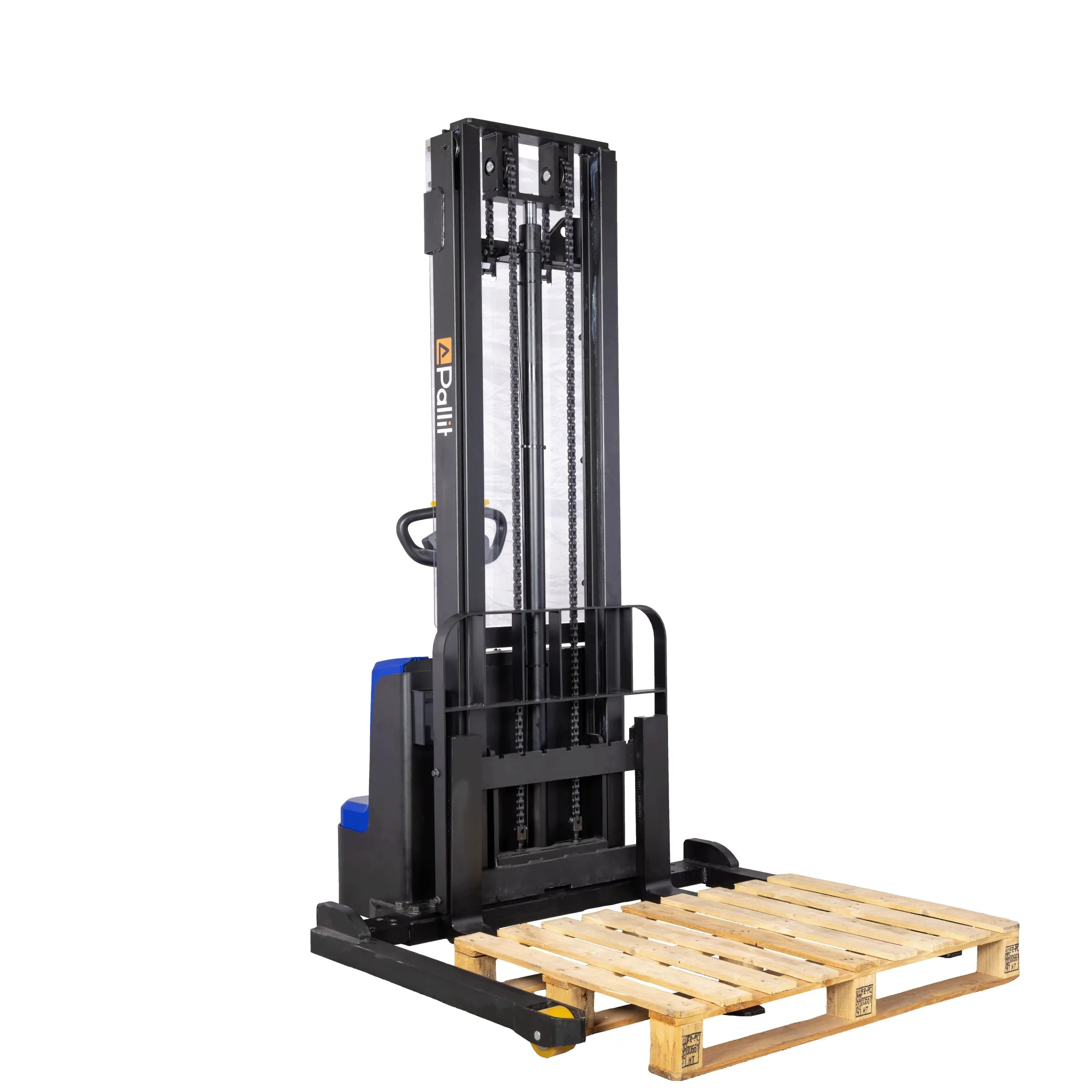

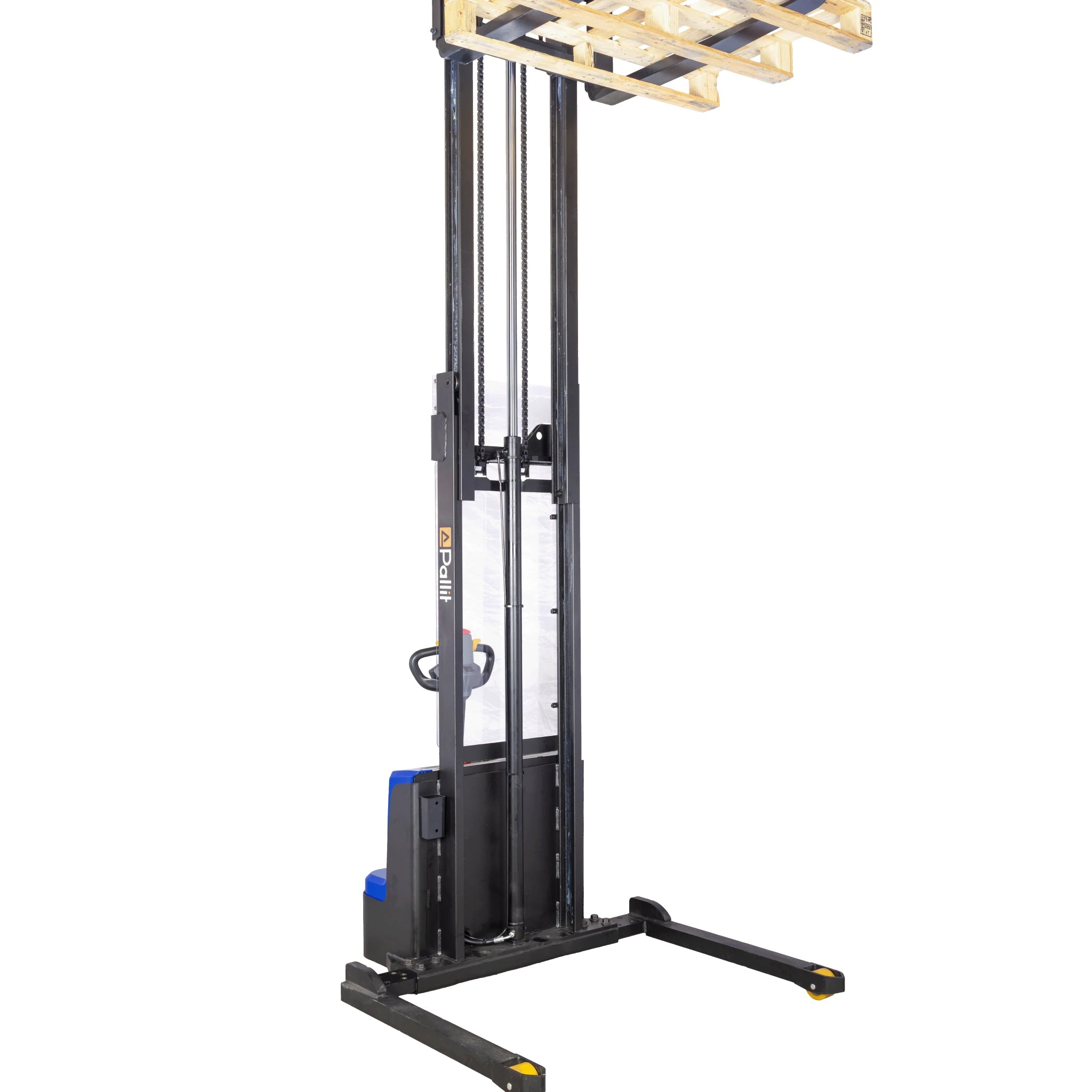

Our BROAD pedestrian stacker is our straddle specialist. With its laterally extended outriggers and forks that can be lowered all the way to the ground, it can drive under the pallet for load pickup. It is the ideal choice for flexible handling of different pallet sizes in tight spaces. For example, Euro pallets, lattice boxes, or industrial pallets can be picked up not only lengthways but also crossways.

Lift height: Make your selection!
Load capacity: BROAD can lift and move a maximum of 1,500 kg

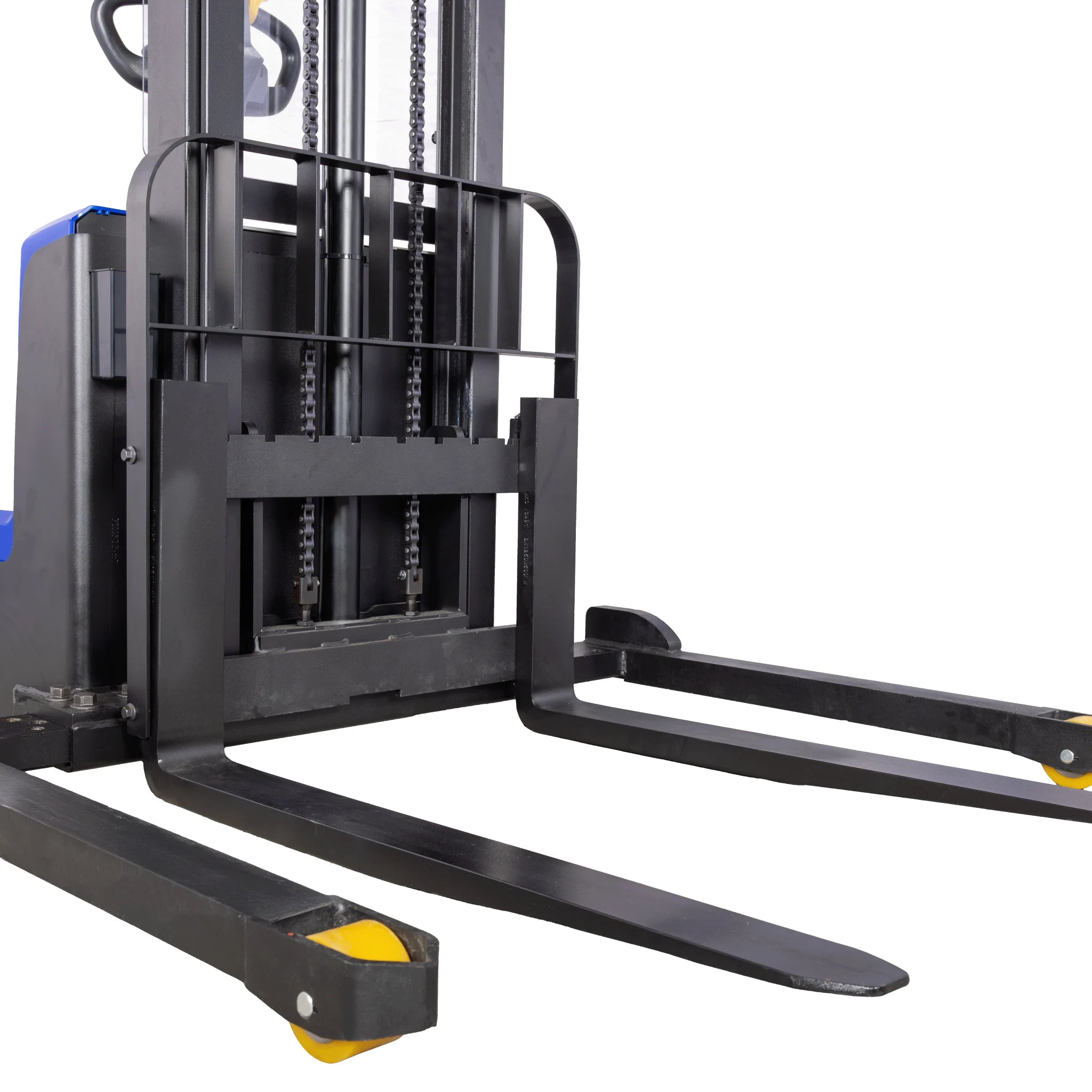

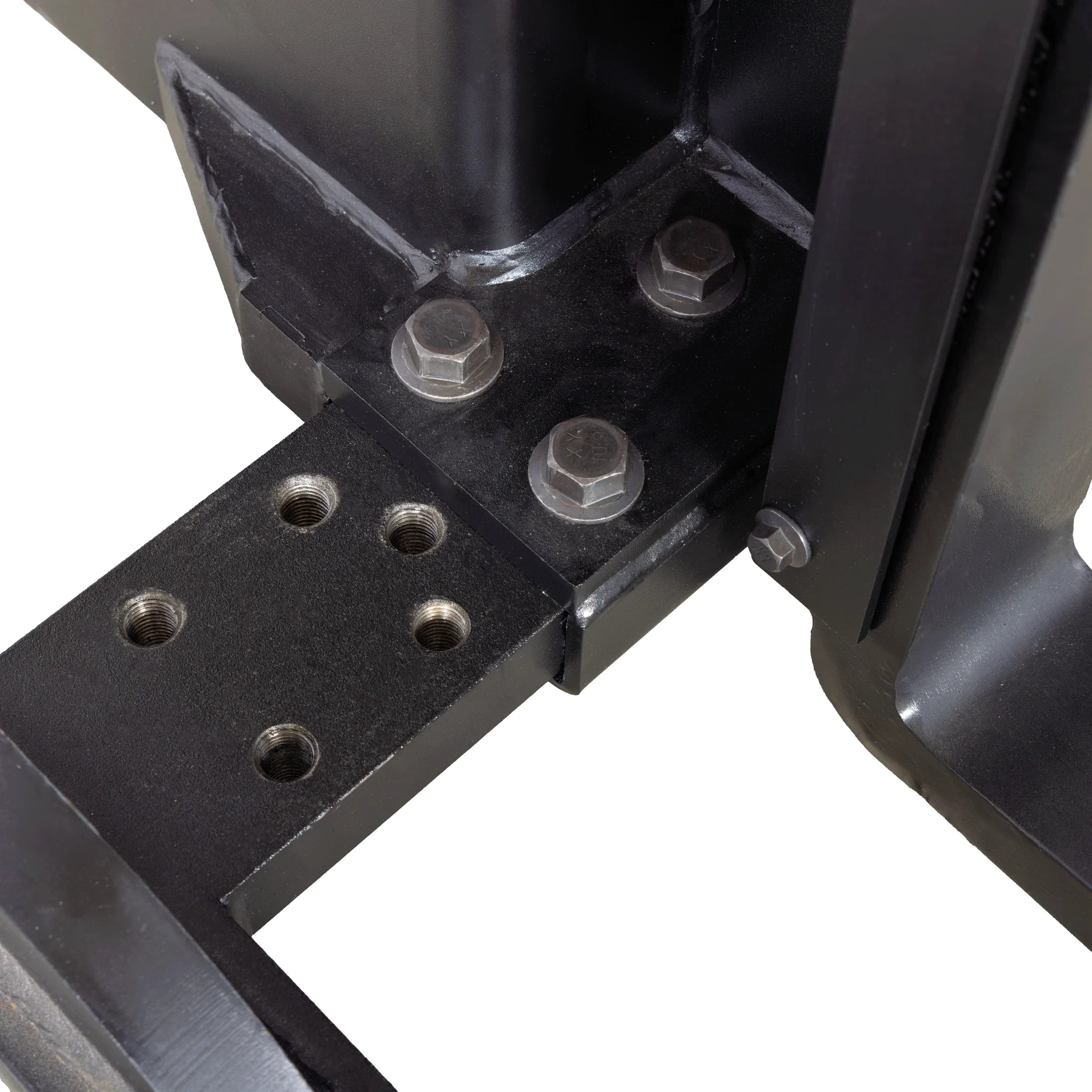

Forks: The straddle forks are adjustable in 3 stages – 970 mm, 1,110 mm, or 1,250 mm
Battery: The powerful lead-fleece batteries (AGM) with a total capacity of 71 Ah last for around 4 hours in continuous operation

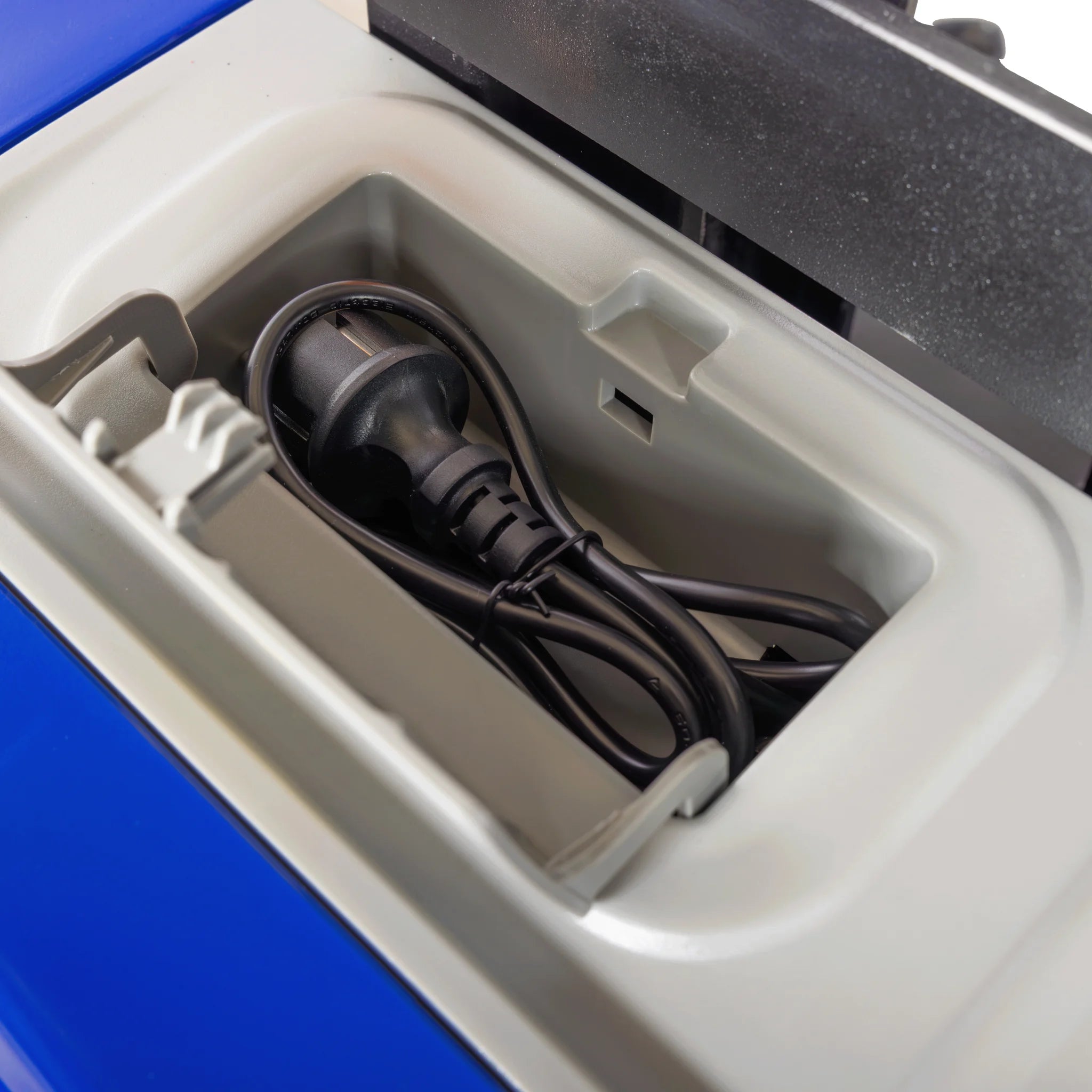

Charging: Simply plug the charging cable into any 230V socket – the battery is fully recharged in 4 h
Proportional lift: Finely metered lifting and lowering for precise work
Fork length: 1,150 mm
High maneuverability: Easily maneuver even in tight spaces with a turning radius of 1,455 mm and single-wheel configuration

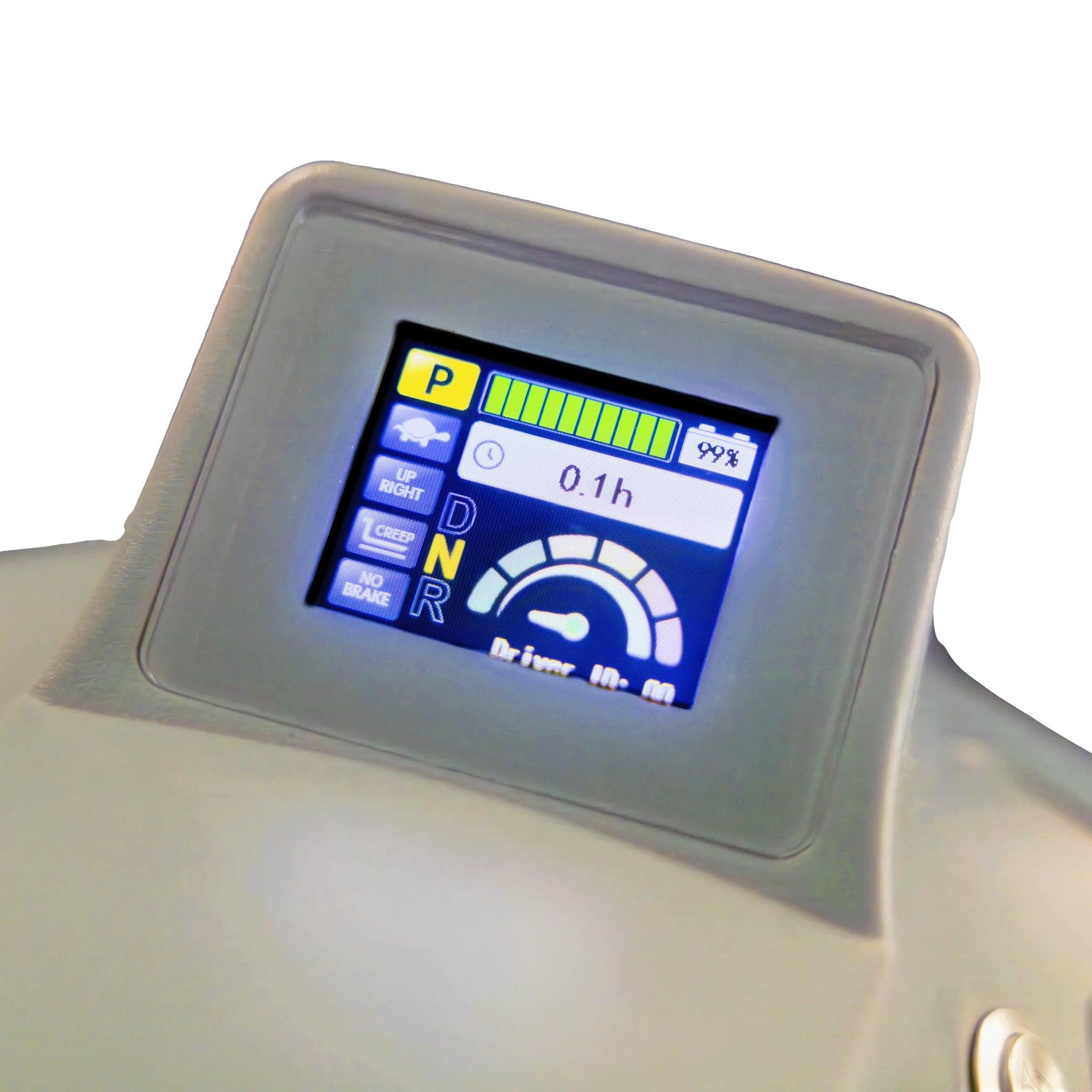

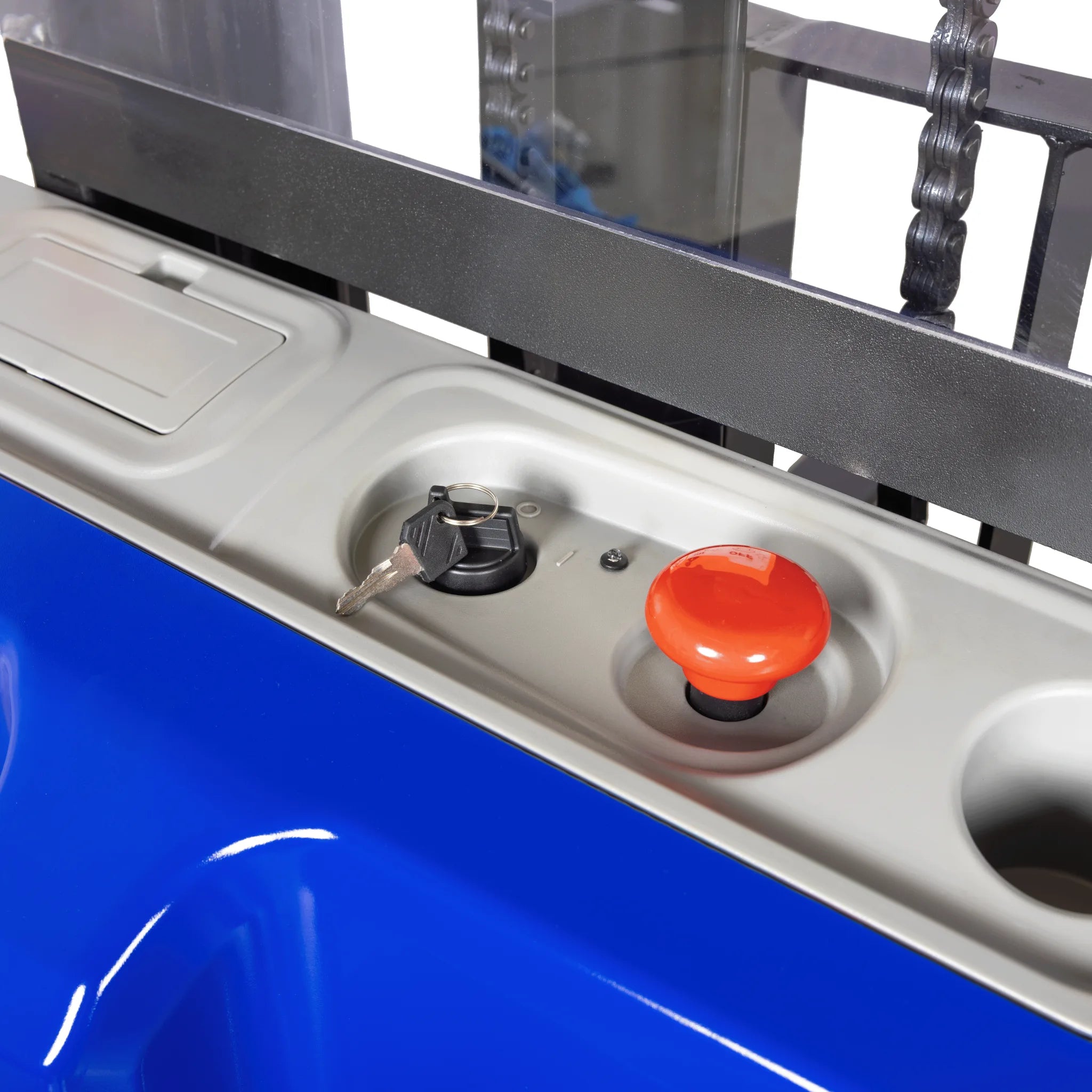

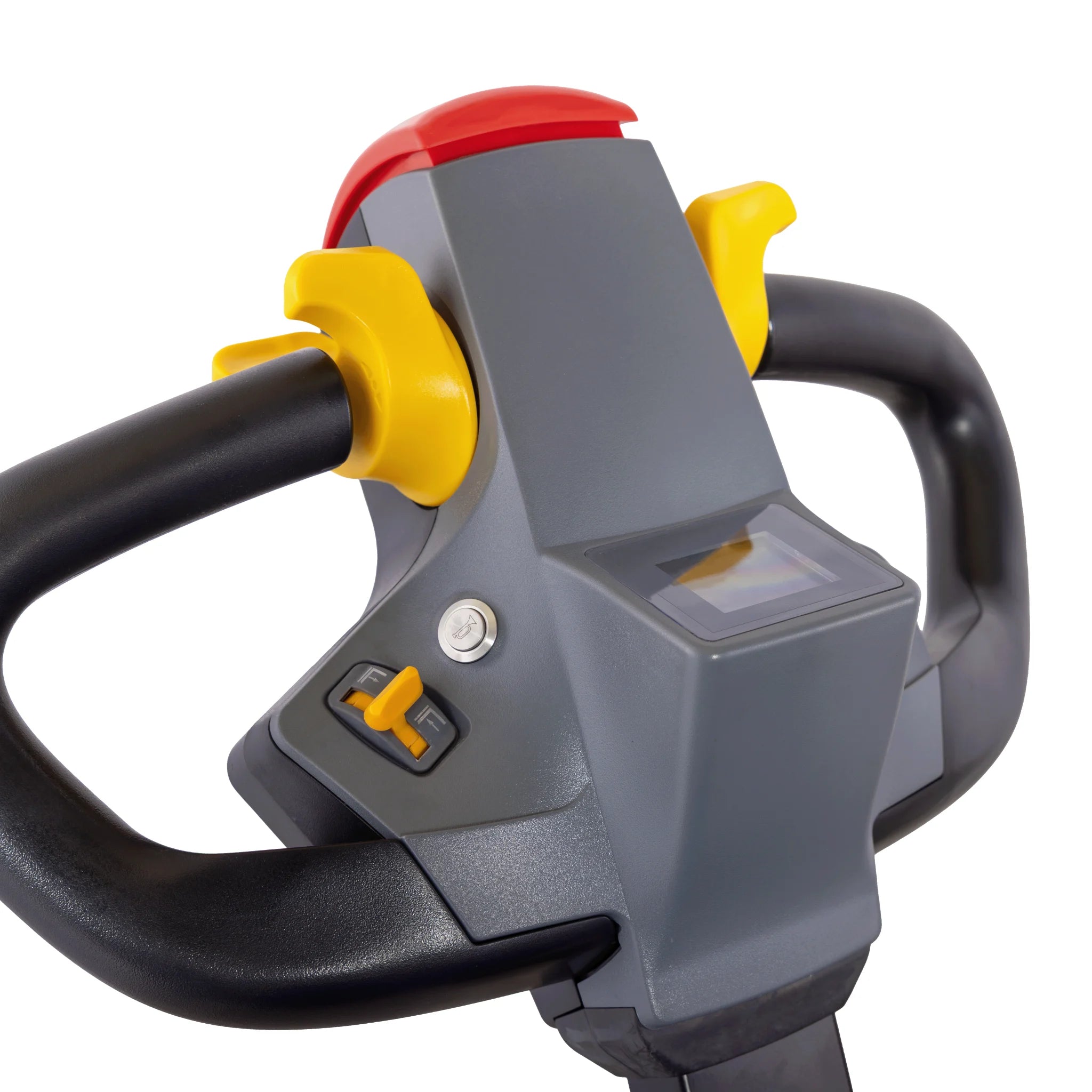

Extras: With multifunctional display and key lock

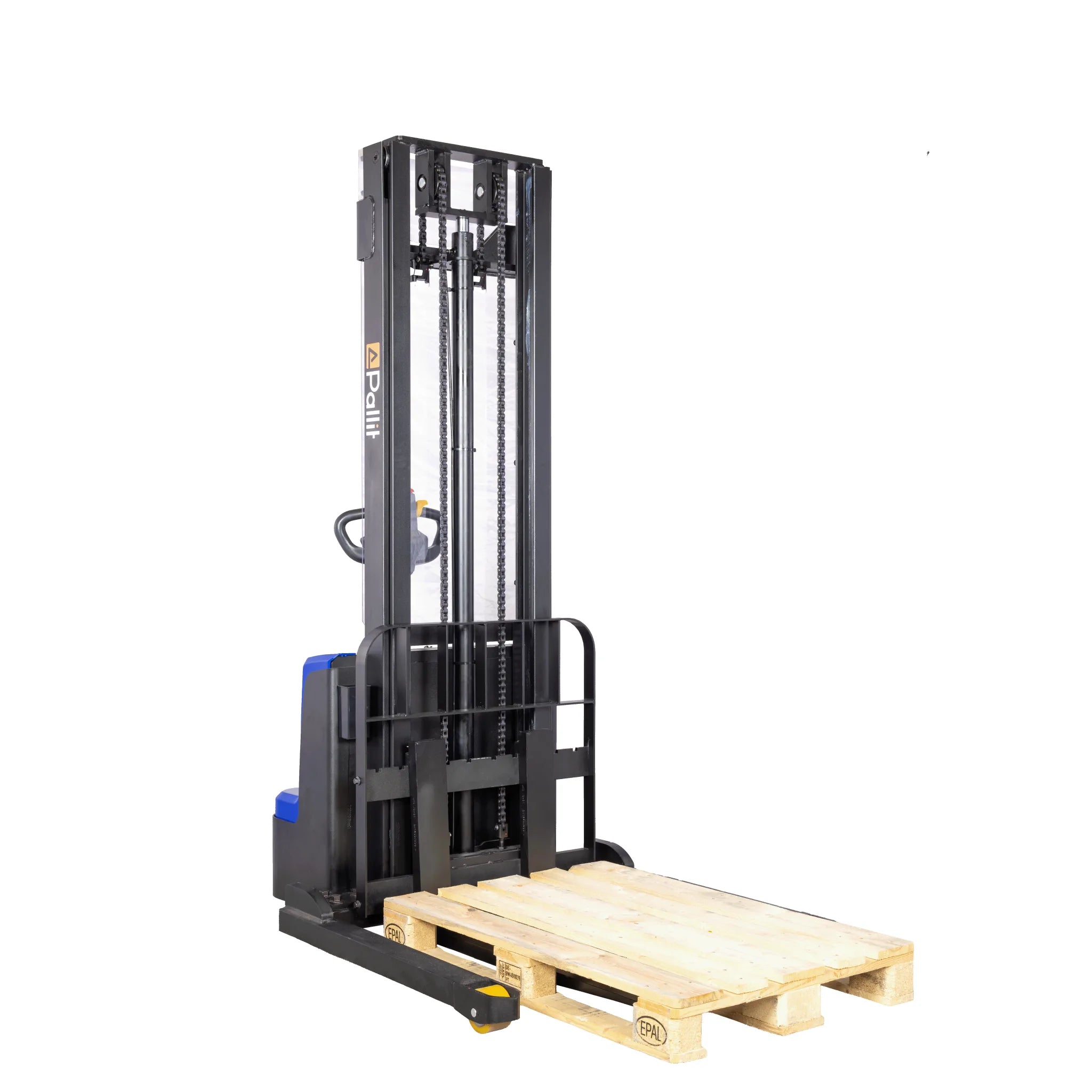

Application: Versatile all-rounder for almost all pallet types, such as non-standard disposable pallets, closed pallets, or for crossway pickup of Euro pallets

Technical data

General

Capacity

1500 kg

Capacity at maximum lift

1500 kg

Weight

651 kg

Forklift licence needed

no

Sound level EN-12053

75 dB

Material

Steel

Colour

Blue

Seal

CE

Warranty

5 years warranty Plus

Brand

Pallit

Product ID

10012304-304

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

84 mm

Steering wheel width

70 mm

Load roller wheel diameter

210 mm

Fork roller width

64 mm

Lift

Lift height

2500 mm

Free lift

no

Lift motor power

2,5 kW

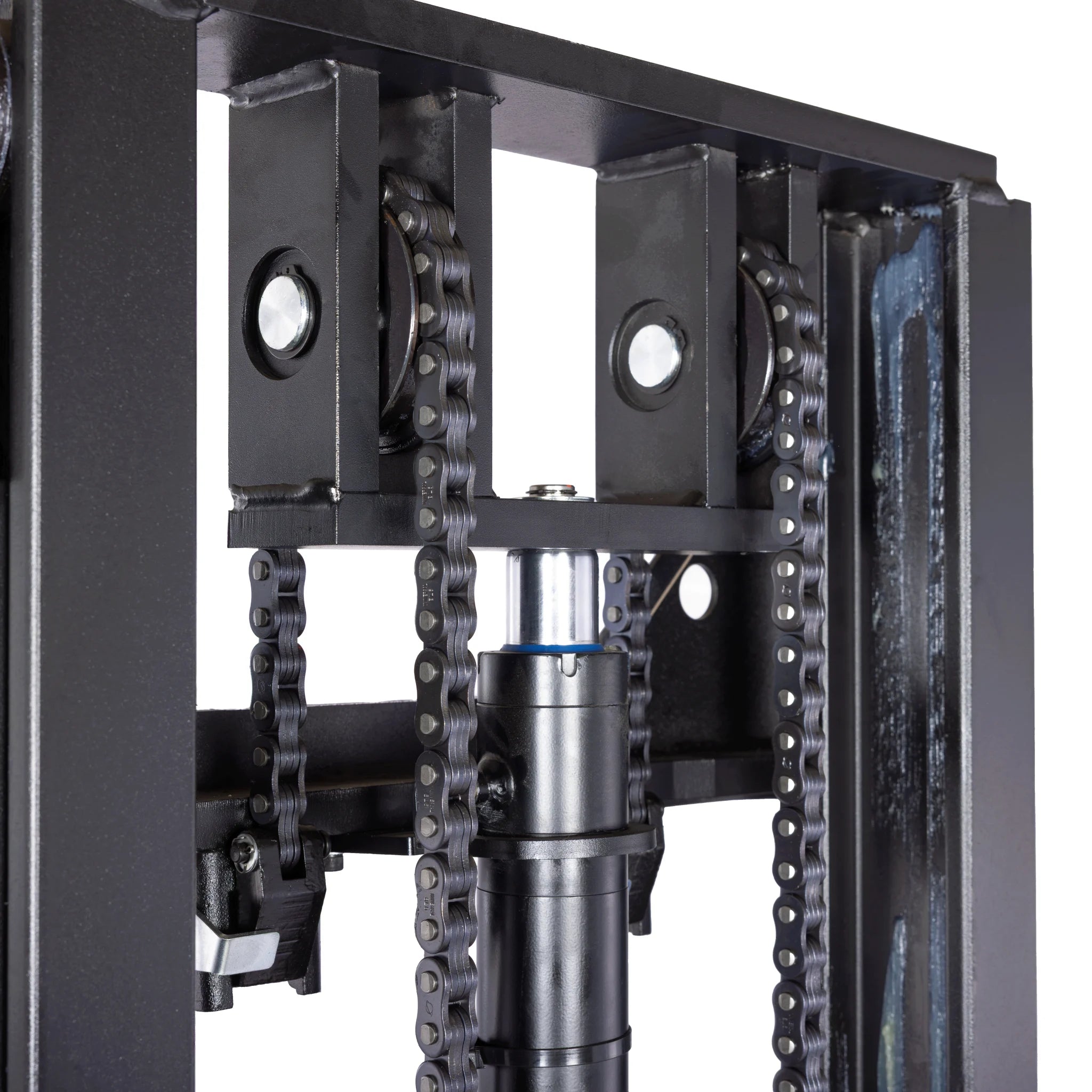

Mast type

Duplex

Adjustment for lifting and low

yes

Lift type

Elektryczno-hydrauliczny

Drive

Drive motor power

0,75 kW

Drive motor type

DC

Travel speed, unladen

4,5 km/h

Creep speed button

yes

Gradeability, unladen

10 %

Max. gradeability, laden

5 %

Drive

Electrical

Brake

Electromagnetic brake

Battery

Battery type

AGM

Battery charging time

2,5 h

Battery capacity

71 Ah

Battery voltage

12 V

Battery quantity

2

Battery weight

23,2 kg

Battery charger

Integrated charger

Delivery

Forwarding agency

Delivered as

On a pallet

Delivery requirements

Access routes accessible for lorry

Links

Mast height table

Capacity chart

Product brochure

Dimensions

Fork length

1150 mm

l
Lift height

2500 mm

h3
Load centre

600 mm

c
Lift height, effective

2440 mm

h12
Height, lowered

1770 mm

h1
Height, extended

3020 mm

h4
Height

1770 mm

h14/h4
Tiller height

1290 mm

h14
Length

1698 mm

l1
Ground clearance

40 mm

m2
Ground clearance, outer

80 mm

h13
Fork width, max.

200-800 mm
Fork height

40 mm

s
Wheelbase

1218 mm

y

Fork width, outer distance

200 - 800 mm

b5
Fork width, single fork

100 mm

e
Aisle width for 1200x800

2217 mm

Ast
Turning radius

1455 mm

Wa
Min. outer distance between forks

200 mm
Max. outer distance between forks

800 mm
