Electric Pallet Stacker ULTRA-XXL

Electric Pallet Stacker ULTRA-XXL

Name: Electric Pallet Stacker ULTRA-XXL
Brand: Pallit
SKU: 10010850-2606
Price: 42815.1 PLN
Availability: InStock

The ultimate high lift truck for everyday use.

42.815 zł 51.378,00 zł VAT included

lifting height

Available from: Monday, 1 March

📢 In use by 83+ companies across Europe

Our ULTRA-XXL electric reach stacker optimizes your logistics processes, ideal for intensive industrial use in large warehouses. It combines powerful technology with easy handling.

Load capacity: 1,600 kg
Full free lift: lifting pallets without changing the forklift height
Proportional lift: Precise and fast lifting and lowering of the forks
Battery: Robust 270 Ah battery for longer operating times
Multi-shift operation: possible with an optional additional battery
External charger: Included, compatible with any normal 230V socket

Features

Easy charging

With external charger – simply connect to a 230V socket and charge.

Well informed

The display shows the current energy level and remaining operating hours.

Proportional lift

Precise lifting and lowering of the forks – for precise work on high shelves.

Fully free lift

Lift pallets without changing the overall height thanks to the free lift – ideal for low rooms.

For the highest demands

The ULTRA-XXL is designed for daily use in industry.

Technical data

General

Capacity

1600 kg

Capacity at maximum lift

1100 kg

Weight

1245 kg

Forklift licence needed

no

Sound level EN-12053

65 dB

Material

steel

Chassis surface

powder coated

Seal

CE

Warranty

5 years warranty Plus

Brand

Pallit

Product ID

10010850-2606

Wheels

Wheels material

Polyurethane (PU)

Fork roller type

tandem

Load roller wheel diameter

84 mm

Fork roller width

84 mm

Lift

Lift height

3400 mm

Free lift

yes

Free lift height

1120 mm

Lift speed, unladen

0,2 m/s

Mast type

duplex

Adjustment for lifting and low

Yes

Lift type

electric

Drive

Drive motor type

alternating current (AC)

Travel speed, unladen

6 km/h

Creep speed button

Yes

Max. gradeability, laden

6 %

Drive

electric

Brake

electromagnetic

Battery

Battery type

lead batteries

Battery capacity

270 Ah

Voltage

24 V

Battery voltage

24 V

Battery quantity

1

Battery weight

230 kg

Battery charger

external charger

Delivery

Special transport

Delivered as

rolling (fully assembled)

Delivery requirements

Ramp or forklift required on site to unload from lorry

Links

Mast height table

Capacity chart

Product brochure

Product manual

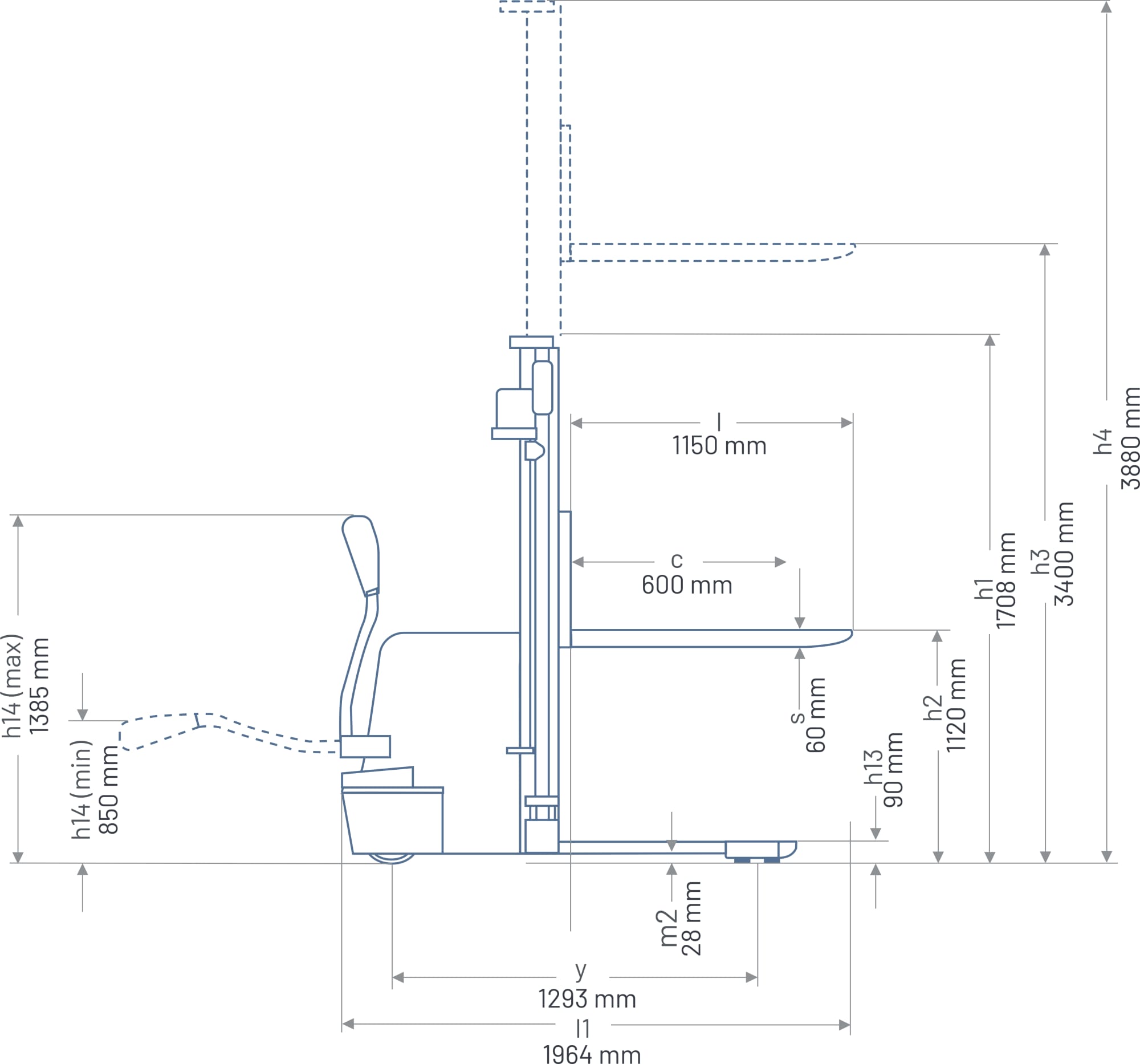

Dimensions

Fork length

1150 mm

l
Lift height

3400 mm

h3
Free lift height

1120 mm

h2
Load centre

600 mm

c
Height, lowered

1708 mm

h1
Height

3880 mm

h14/h4
Tiller height

1385 mm

h14
Length

1964 mm

l1
Ground clearance

28 mm

m2
Ground clearance, outer

90 mm

h13

Width

820 mm

b1
Fork width, outer distance

570 mm

b5
Fork width, single fork

180 mm

e
Aisle width for 1200x800

2393 mm

Ast
Turning radius

1510 mm

Wa
Distance between forks

210 mm
