Electric Pallet Stacker BUDGET-S for 2,5m

Name: Electric Pallet Stacker BUDGET-S for 2,5m
Brand: Pallit
SKU: 10010503-0
Price: 12111.0 PLN
Availability: InStock

12.111,00 zł 14.533,20 zł VAT included

Free delivery: 06 May

SKU 10010503-0

We’re here to help you

Contact our product experts via email or phone

+498123 900 88 90

Our BUDGET-S electric stacker is the ideal entry into the segment of fully electric pallet stackers. This stacker can lift up to 2,5m. Whether for transport, order picking work or stacking - this electric high lift truck reliably lifts loads up to 1200 kg to a lifting height of 2500 mm. This high quality product is perfectly suited for loading and unloading trucks, delivery vans or working on high shelves.

Cost-effective and reliable entry-level model
Total height of 1744 mm for easy passage through many doors
Load capacity of 1200 kg with a lifting height of 2500 mm
Ergonomic handle for user-friendly control
Charging of maintenance-free lead-gel batteries at conventional 230V sockets
Small turning radius of 1366 mm for small storage areas

Features

Low design height

With a height of less than 1.8m, it fits through all doors and is suitable for low rooms or to take with you in a truck.

Ergonomic handle

The handle is equipped with ignition lock, turtle mode and safety button.

Discharge indicator on the device

The display shows the current energy level and the remaining operating hours.

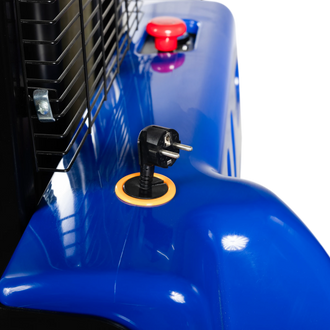

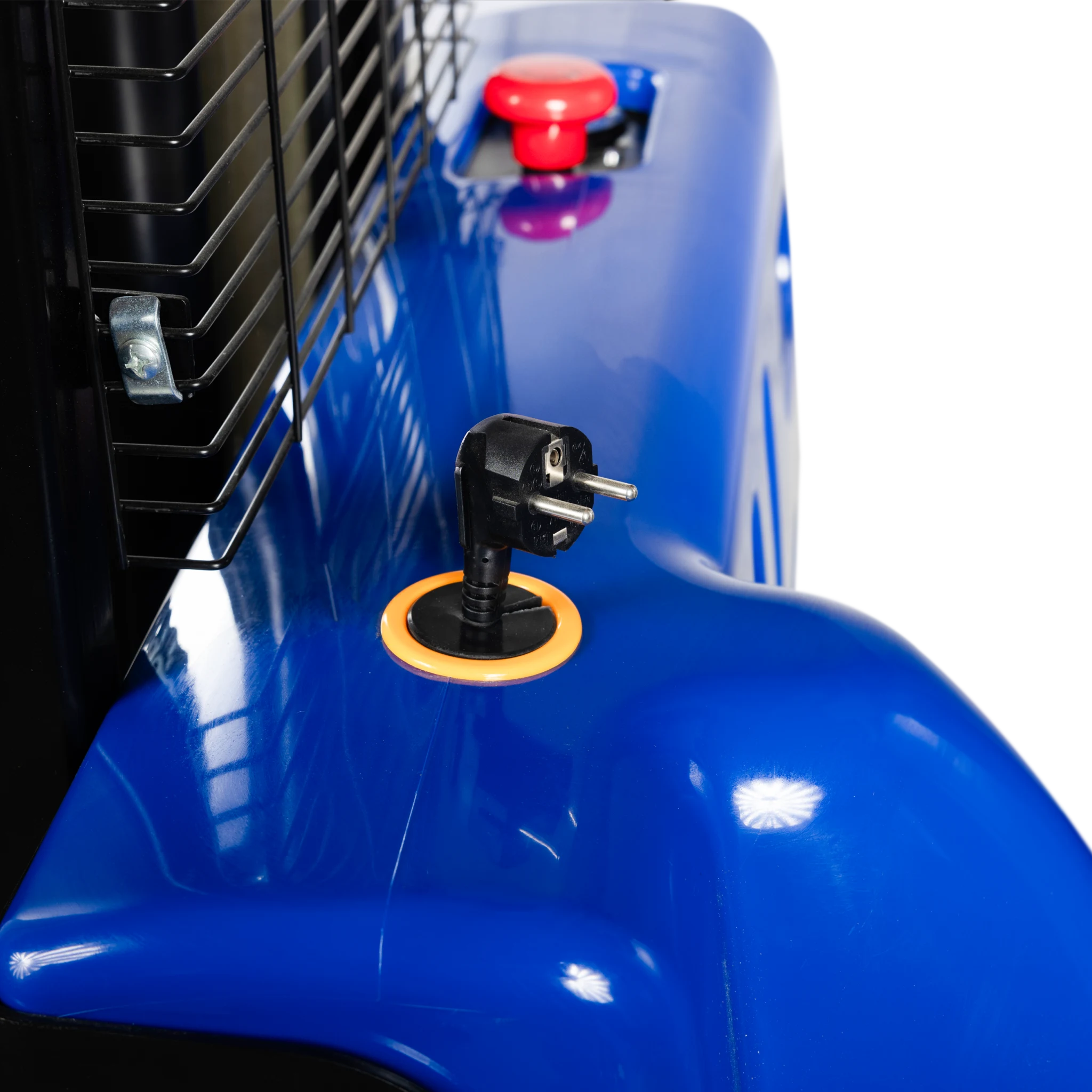

Easy charging

Features an integrated charger - simply plug into any power socket.

Electric Pallet Stacker BUDGET-S for 2,5m 3

Blei-Gel-Batterien

Bewährte Batterietechnik ohne Wartungsaufwand zum günstigen Preis.

Dane techniczne

General

Capacity

1200 kg

Capacity at maximum lift

900 kg

Weight

450 kg

Forklift licence needed

no

Sound level EN-12053

70 dB

Material

steel

Chassis surface

powder coated

Colour

Red

SKU

10010503-0

Brand

Pallit

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

210 mm

Steering wheel width

70 mm

Fork roller type

tandem

Load roller wheel diameter

80 mm

Fork roller width

70 mm

Lift

Lift height

2500 mm

Free lift

no

Lift motor power

2,2 kW

Lift speed, unladen

0,13 m/s

Lowering speed, unladen

0,1 m/s

Mast type

Duplex

Lift type

electric

Drive

Drive motor power

0,75 kW

Drive motor type

AC motor

Travel speed, unladen

4,2 km/h

Creep speed button

Yes

Gradeability, unladen

8 %

Max. gradeability, laden

6 %

Drive

electric

Brake

electromagnetic

Battery

Battery type

gel

Operating time

4 h

Battery charging time

6 h

Battery capacity

100 Ah

Battery voltage

12 V

Battery quantity

2

Battery weight

54 kg

Battery charger

Integrated charger

Delivery

Forwarding agency

Delivered as

on pallet

Warranty

5 years warranty Basic

Links

Traglastdiagramm

Produktbroschüre

Dimensions

Fork length

1150 mm

l
Lift height

2500 mm

h3
Load centre

600 mm

c
Lift height, effective

2410 mm

h12
Height, lowered

1744 mm

h1
Height, extended

2924 mm

h4
Tiller height

1221 mm

h14
Length

1755 mm

l1
Ground clearance

24 mm

m2
Ground clearance, outer

86 mm

h13

Width

795 mm

b1
Fork width, outer distance

570 mm

b5
Fork width, single fork

160 mm

e
Distance between forks

230 mm

b5
Aisle width for 1200x800

2034 mm

Ast
Turning radius

1366 mm

Wa

Capacity

Fork length

Height, lowered
