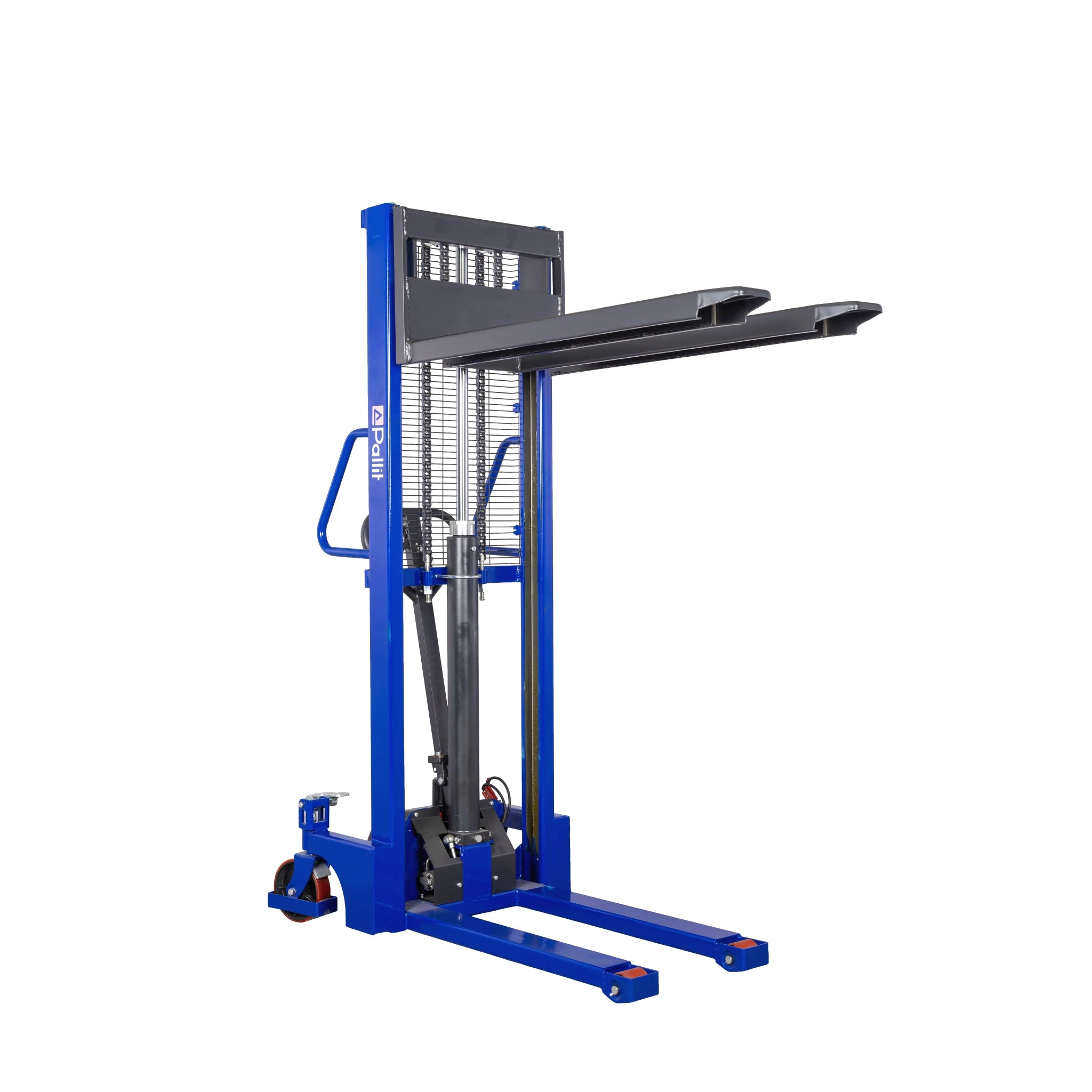

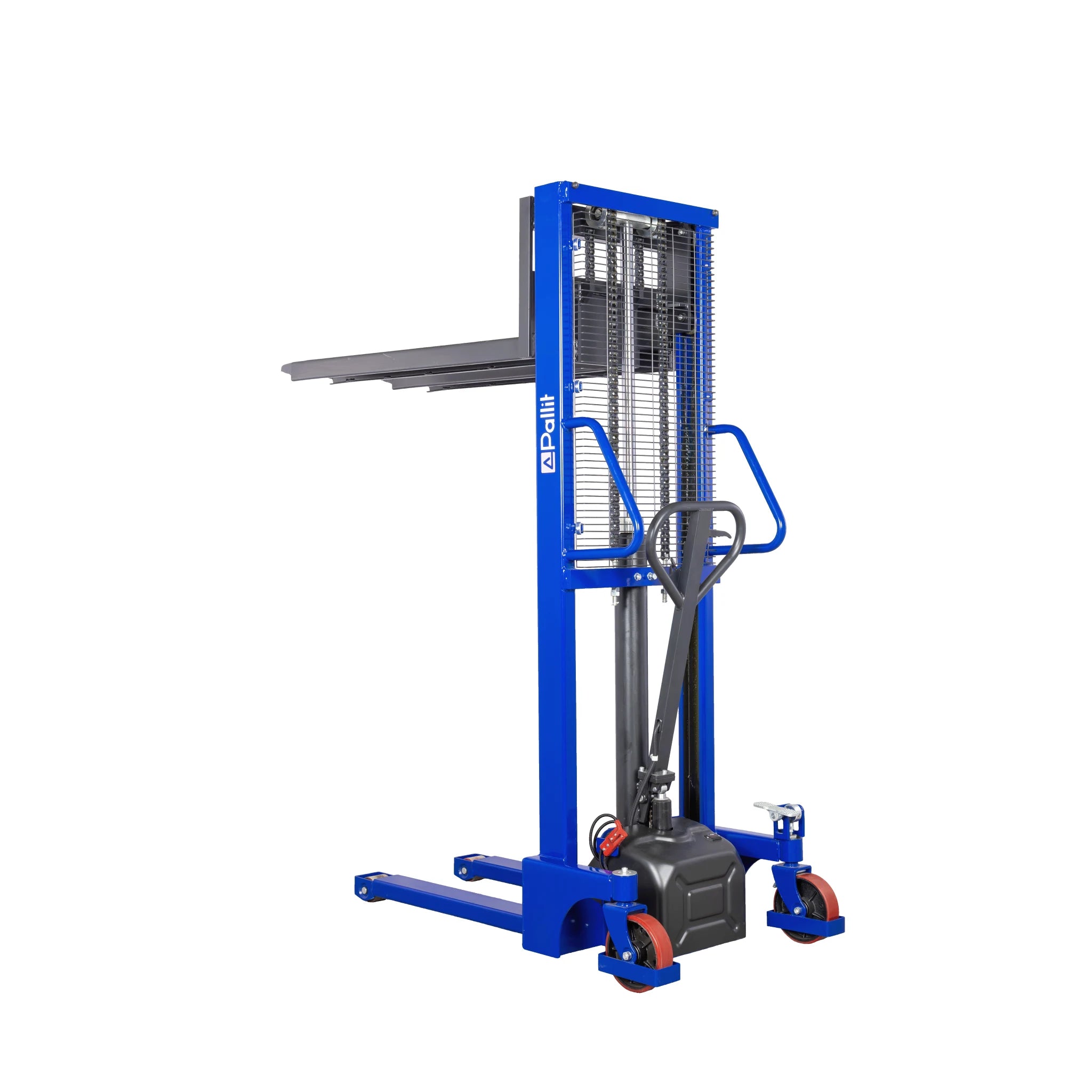

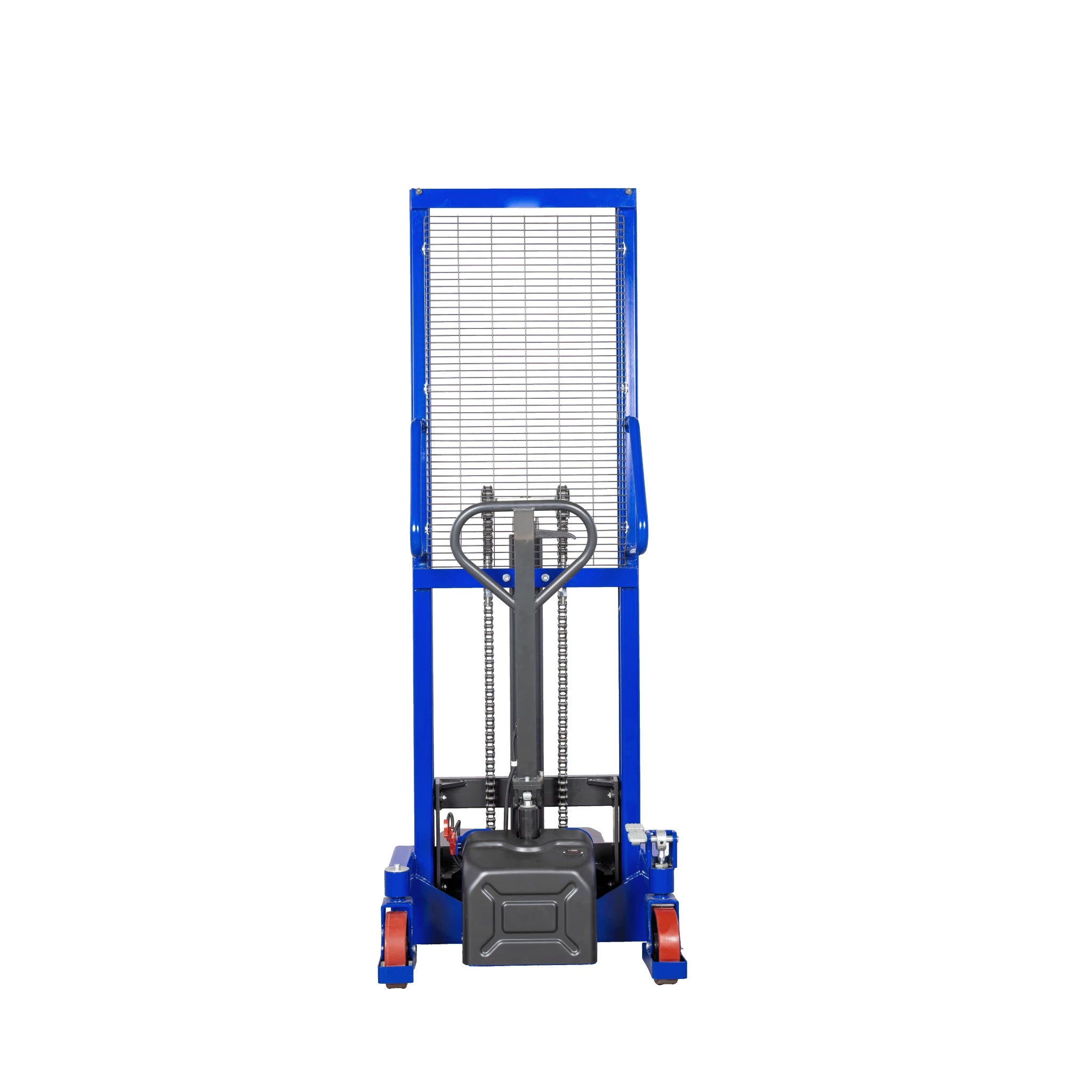

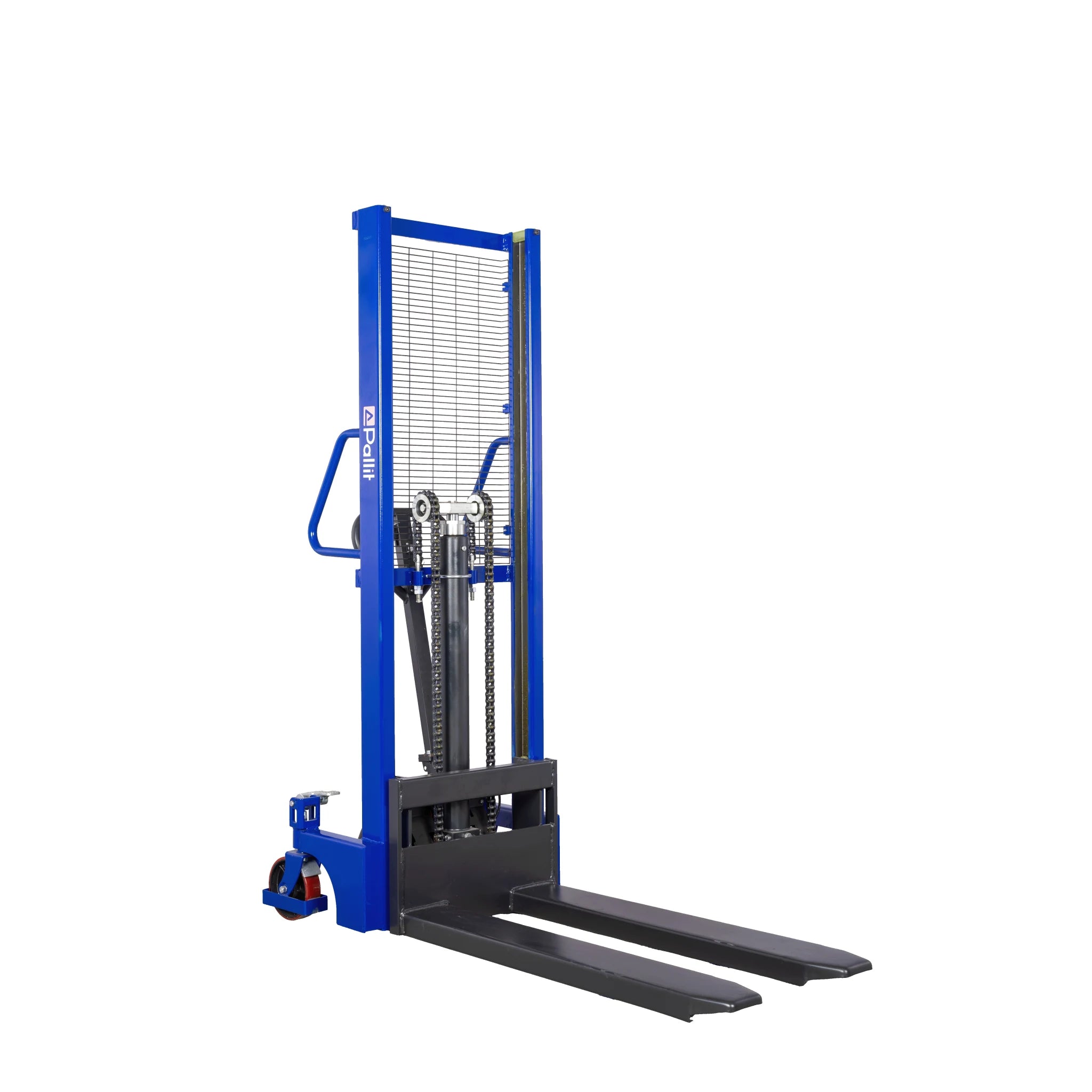

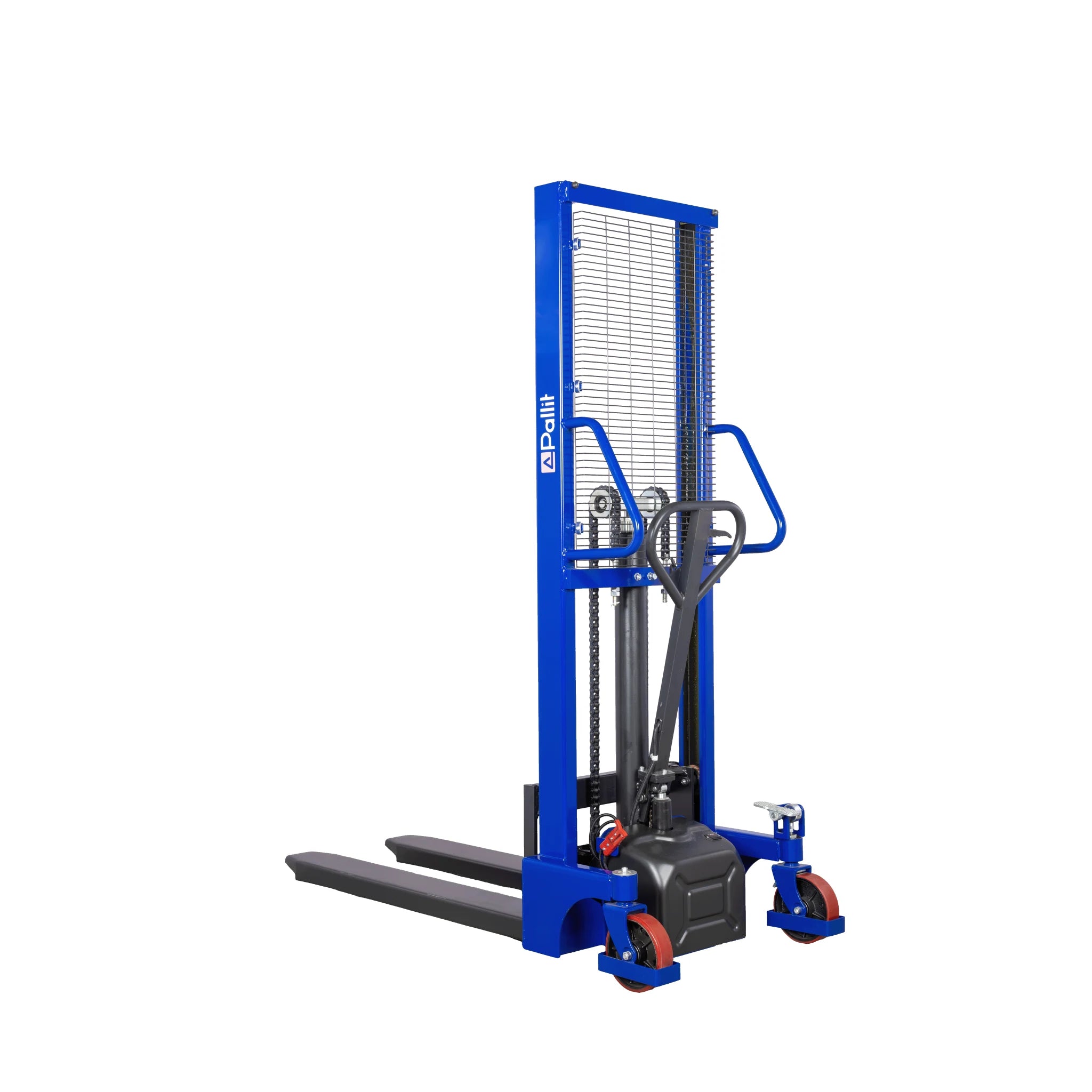

Semi-Electric Stacker SEMI for 1500kg

Name: Semi-Electric Stacker SEMI for 1500kg
Brand: Pallit
SKU: 10010161-55
Price: 9691.0 PLN
Availability: InStock

– 28 %

13.404,00 zł

9.691,00 zł 11.629,20 zł VAT included

Available from: 07 June

Lift height

SKU 10010161-55

We’re here to help you

Contact our product experts via email or phone

+498123 900 88 90

This semi-electric pallet stacker is a cost-effective way of saving energy when stacking occasionally (1,600 to 3,500 mm lifting height depending on the variant) and loading and unloading commercial vehicles. With a load capacity of 1500 kg, it can also be used as an optimal working platform to provide goods at an ergonomically adjusted height in everyday production.

Fork length: 1150 mm
Capacity: 1500 kg
Lift height: 1600 mm to 3500 mm
Battery capacity/voltage: 125 Ah / 12 V

Features

Semi-Electric Stacker SEMI for 1500kg 14

Podnoszenie elektrycznie, przesuwanie ręcznie

Zwiększa to przeładunek towarów i jest przyjazne dla portfela.

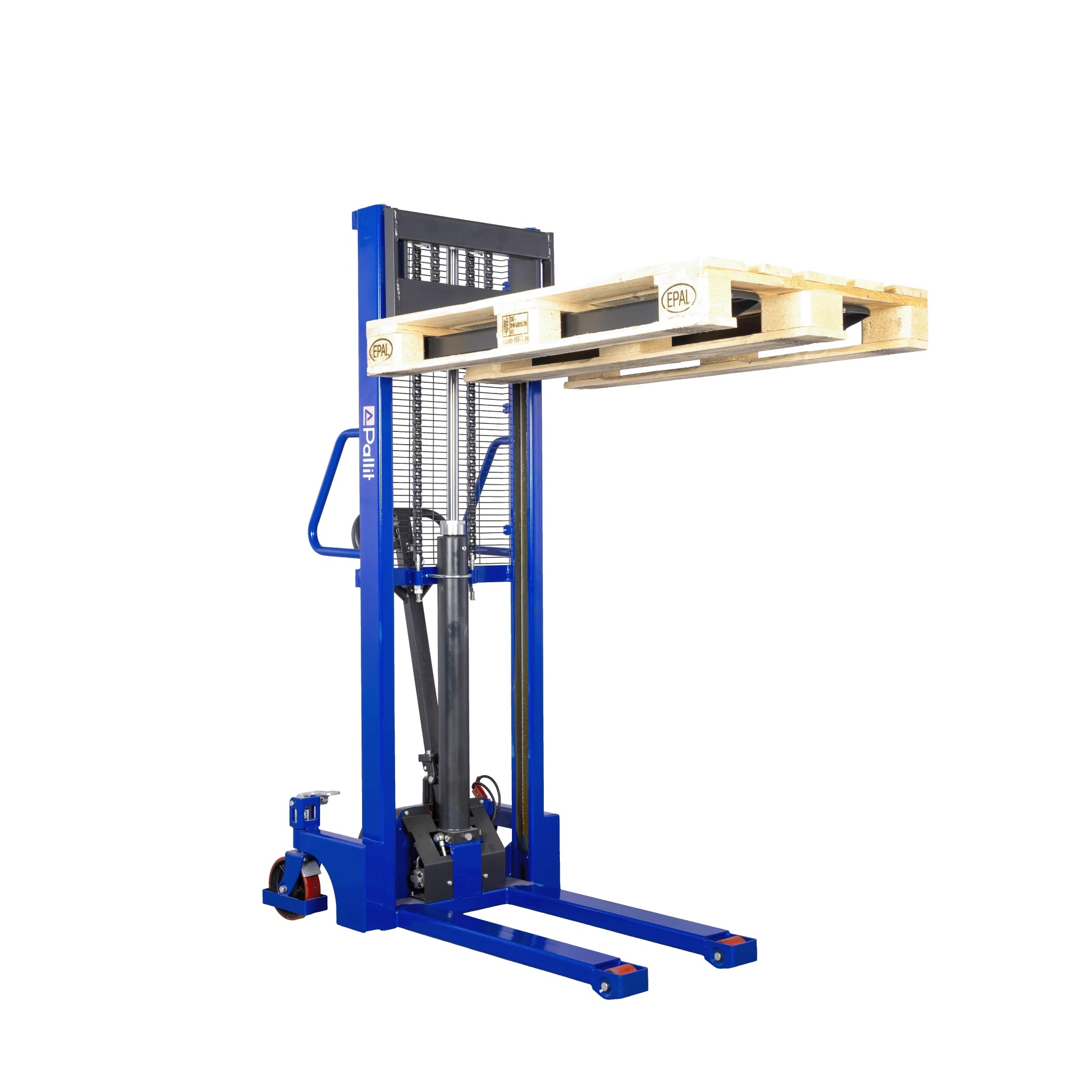

Halbelektrischer Hochhubwagen SEMI im Einsatz

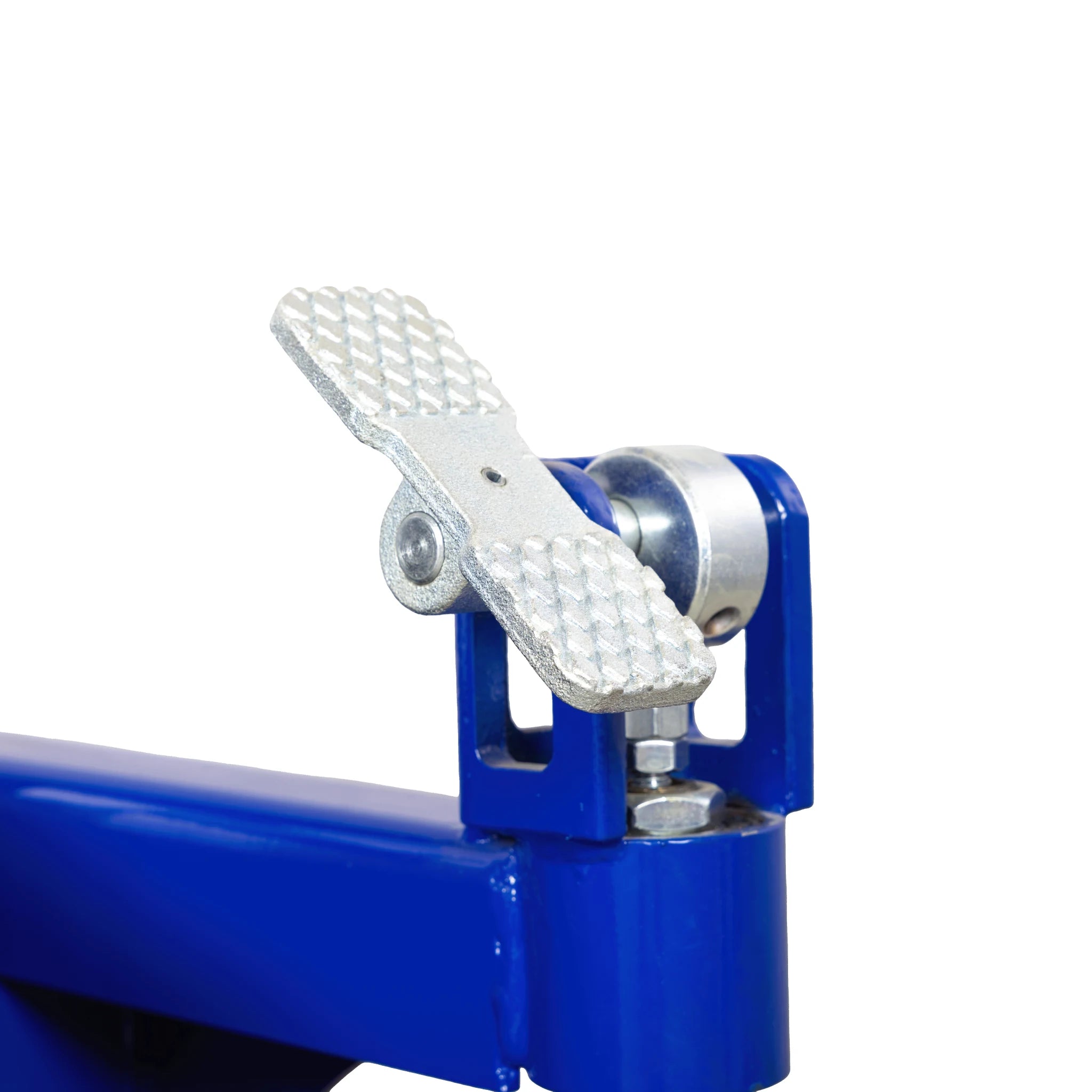

Mechaniczny hamulec postojowy

Nasz SEMI może być również używany jako platforma robocza lub stół warsztatowy do prezentacji towarów na ergonomicznie dostosowanej wysokości w codziennej produkcji.

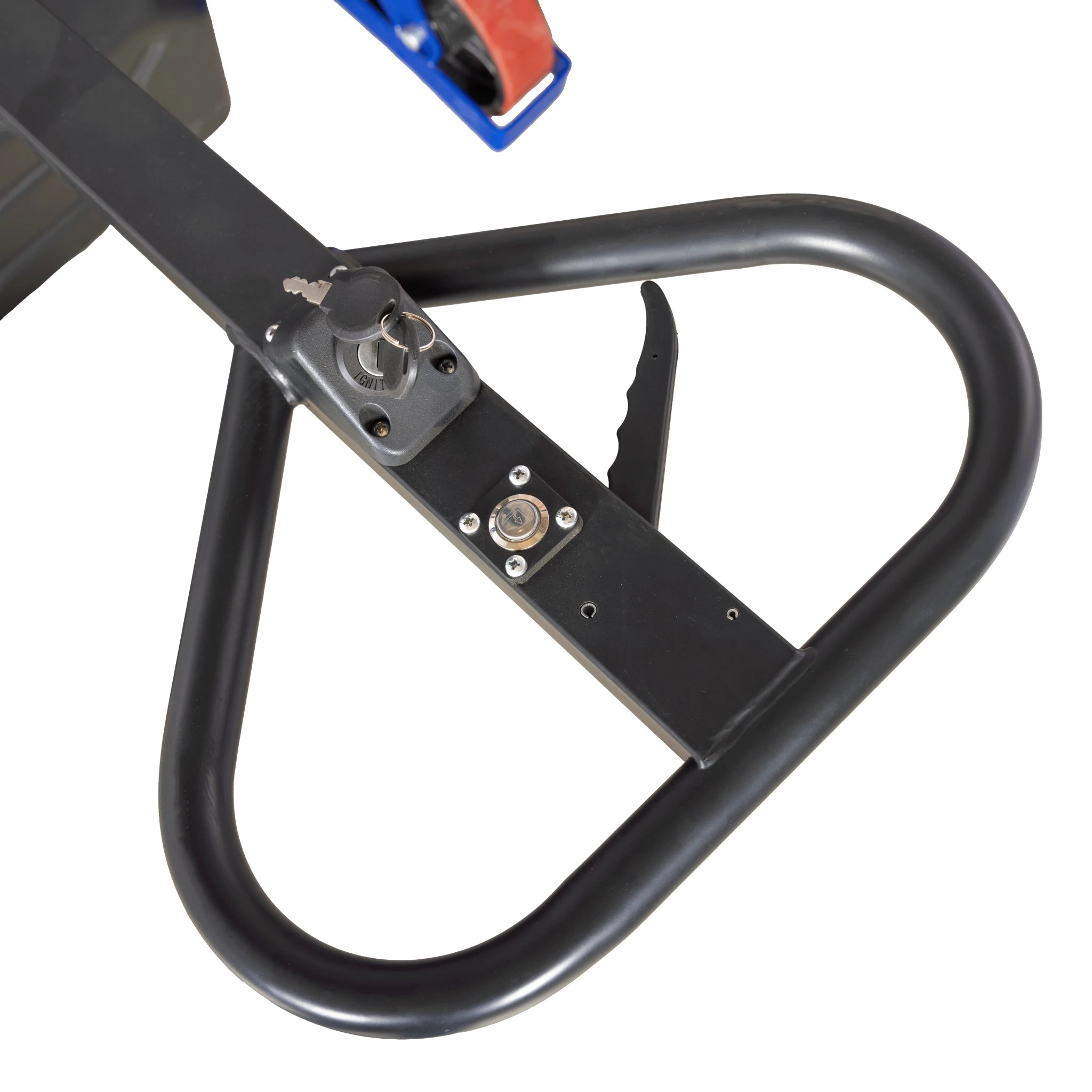

Intuicyjna obsługa

Przejrzyste elementy obsługi i czytelne wyświetlacze umożliwiają szybkie i łatwe zapoznanie się z urządzeniem.

Dane techniczne

General

Capacity

1500 kg

Weight

450 kg

Sound level EN-12053

70 dB

Material

steel

Chassis surface

powder coated

Colour

Blue

SKU

10010161-55

Brand

Pallit

Wheels

Wheels material

Nylon

Steering wheel diameter

180 mm

Steering wheel width

50 mm

Fork roller type

single

Load roller wheel diameter

80 mm

Fork roller width

70 mm

Lift

Lift height

1600 mm

Free lift

no

Lift motor power

1,5 kW

Lift speed, unladen

0,09 m/s

Lowering speed, unladen

0,13 m/s

Mast type

Pojedynczy

Lift type

electric

Drive

manual

Brake

mechanically

Battery

Battery type

gel

Operating time

5 h

Battery charging time

6 h

Battery capacity

125 Ah

Battery voltage

12 V

Battery quantity

1

Battery weight

45 kg

Battery dimensions

360x170x250 mm

Battery charger

integrated

Delivery

forwarding agency

Delivered as

on pallet

Warranty

5 years warranty Basic

Links

Traglastdiagramm

Produktbroschüre

Dimensions

Fork length

1150 mm

l
Lift height

1600 mm

h3
Load centre

500 mm

c
Lift height, effective

1510 mm

h12
Height, lowered

2090 mm

h1
Height, extended

2090 mm

h4
Tiller height

1220 mm

h14
Length

1740 mm

l1
Ground clearance

21 mm

m2
Ground clearance, outer

90 mm

h13

Width

800 mm

b1
Fork width, outer distance

570 mm

b5
Fork width, single fork

170 mm

e
Distance between forks

230 mm

b5
Aisle width for 1200x800

2347 mm

Ast
Turning radius

1505 mm

Wa
