Fork extensions SLEEVE-M for forklift forks with 130x45mm

fork extensions 130x45 with open underside image 1

Fork extensions SLEEVE-M for forklift forks with 130x45mm

Name: Fork extensions SLEEVE-M for forklift forks with 130x45mm
Brand: Pallit
SKU: 10010065-205
Price: 1199.7 PLN
Availability: InStock

Fork extensions with open bottom at a low price.

1.199,70 zł 1.439,64 zł VAT included

Length

Free delivery: Monday, 10 February

SKU 10010065-205

This fork extension is used when packing items with a certain excess length must be moved or loaded. Easily mounted on the lifting forks on the forklift truck, the total loading area is extended by 1600 mm or up to 2400 mm so that these packing items can be manoeuvred and transported quickly and safely. For example, two Europallets can be transported all at once with a forklift truck. This high-quality fork extension is made of robust steel, and has a maximum loading capacity of 5000 kg. Important note: Please remember that the fork arm length must amount to at least 60% of the total extension, for structural stability!This load capacity and the distance to the stacker´s load centre of gravity must be complied with at all times.

Fork length: 1600 mm to 2400 mm
Material thickness: 6 mm
Capacity: 5000 kg

Technical data

General

Capacity

5000 kg

Weight

42 kg

Material

steel

Colour

Black

Seal

CE

Material diameter

6 mm

SKU

10010065-205

Brand

Pallit

Delivery

forwarding agency

Delivered as

on pallet

Quantity

2

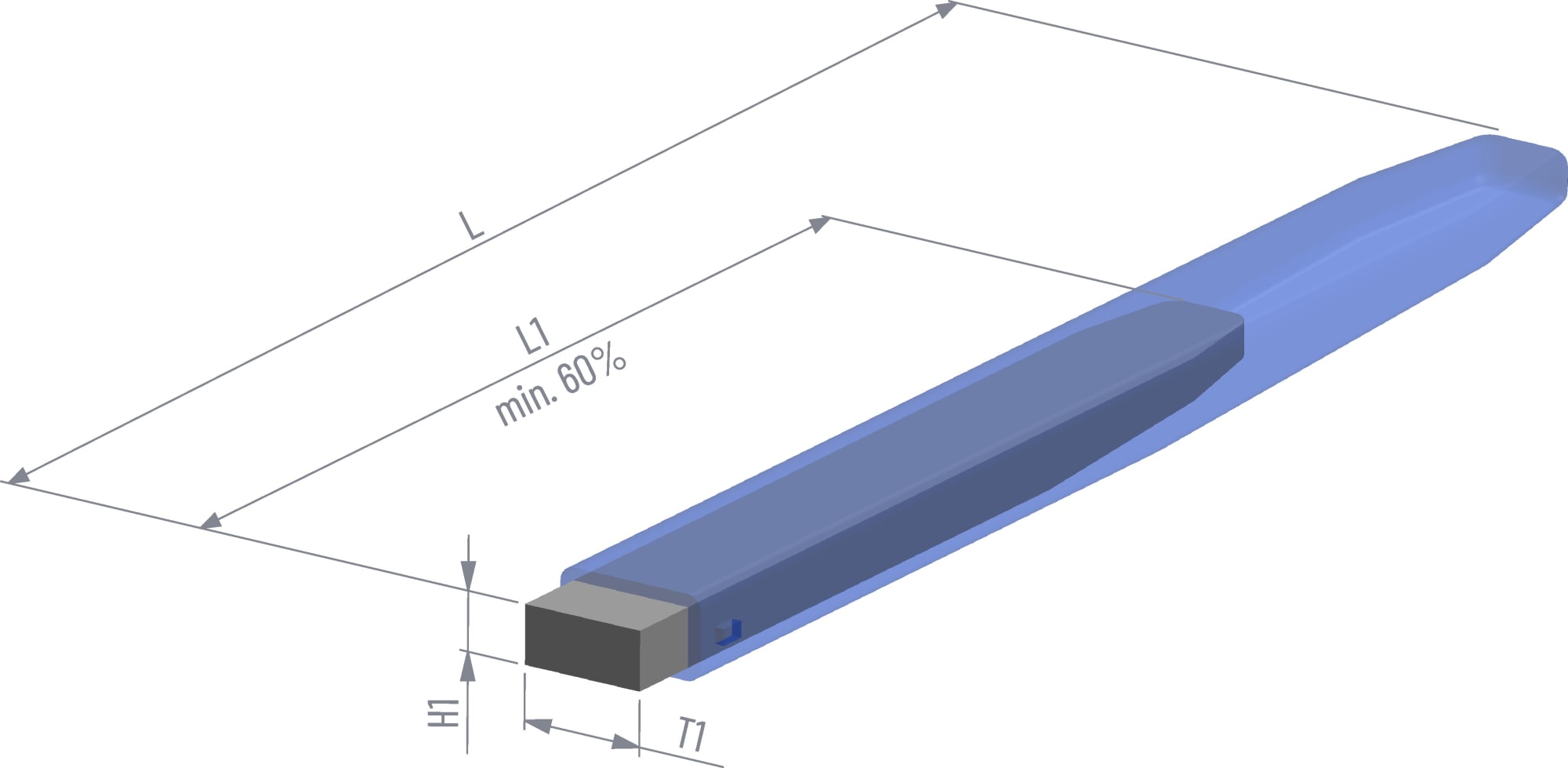

Dimensions

Fork length

1600 mm

l
Height

56 mm

h14/h4
Length

1600 mm

l1
Opening for securing

55 mm
Fork pocket width

135 mm
Fork pocket height

50 mm
Fork width, max.

130 mm
Max fork height

45 mm

Width

147 mm

b1
Minimum fork length

960 mm

B
