Manual Stacker LIFT-XXL for 3m

Name: Manual Stacker LIFT-XXL for 3m
Brand: Pallit
SKU: 10000905-82
Price: 6296.0 PLN
Availability: InStock

– 9 %

6.921,00 zł

6.296,00 zł 7.555,20 zł VAT included

Free delivery: 03 May

SKU 10000905-82

We’re here to help you

Contact our product experts via email or phone

+498123 900 88 90

This manual pallet stacker with 1000 kg capacity and 3000 mm free lift is suitable for private use as well as small and medium-sized businesses looking for an inexpensive alternative to an electric pallet stacker. It can be used for moving pallets and pallet cages, for loading and unloading trucks without a loading platform as well as for storage and retrieval work up to a height of 3000 mm. As it does not extend, unlike telescopic masts, the height of the truck does not change in operation. Thus, a free lift is given over the entire lifting height.

Fork length: 1150 mm
Load capacity: 1000 kg
Lift height: 3000 mm
Tyres: polyurethan
Weight: 305 kg

Dane techniczne

General

Capacity

1000 kg

Weight

305 kg

Max. lowering when loaded

3,25 mm

Material

steel

Chassis surface

powder coated

Colour

Blue

SKU

10000905-82

Brand

Pallit

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

145 mm

Steering wheel width

40 mm

Fork roller type

tandem

Load roller wheel diameter

80 mm

Fork roller width

60 mm

Lift

Lift height

3000 mm

Free lift

yes

Free lift height

300 mm

Lift height per full stroke

20 mm

Mast type

podwójny

Lift type

manual hydraulic

Drive

manual

Delivery

forwarding agency

Delivered as

rolling (fully assembled)

Warranty

5 years warranty Basic

Links

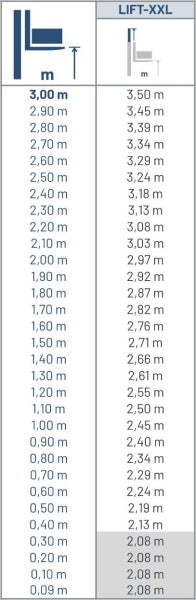

Traglastdiagramm

Produktbroschüre

Dimensions

Fork length

1150 mm

l
Lift height

3000 mm

h3
Free lift height

300 mm

h2
Load centre

600 mm

c
Lift height, effective

2915 mm

h12
Height, lowered

2080 mm

h1
Height, extended

3500 mm

h4
Tiller height

1200 mm

h14
Length

1705 mm

l1
Ground clearance

25 mm

m2
Ground clearance, outer

90 mm

h13

Width

860 mm

b1
Fork width, outer distance

580 mm

b5
Fork width, single fork

170 mm

e
Distance between forks

240 mm

b5
Aisle width for 1200x800

1945 mm

Ast
Turning radius

1380 mm

Wa
